Today is the fourth birthday of oldWeather, and it’s almost two years since we started work on the Arctic voyages. So it’s a good time to illustrate some more of what we’ve achieved:

I’m looking at the moment at the Arctic ships we’ve finished: Bear, Corwin, Jeannette, Manning, Rush, Rodgers, Unalga II, and Yukon have each had all of their logbook pages read by three people; so it’s time to add their records to the global climate databases and start using them in weather reconstructions. From them we have recovered 43 ship-years of hourly observations – more than 125,000 observations concentrating on the marginal sea-ice zones in Baffin Bay and the Bering Strait – an enormous addition to our observational records.

The video above shows the movements of this fleet (compressed into a single year). They may occasionally choose to winter in San Pedro or Honolulu, but every summer they are back up against the ice – making observations exactly where we want them most.

So in our last two years of work, we’ve completed the recovery of 43-ship years of logbooks, and actually we’ve done much more than that: The eight completed ships shown here make up only about 25% of the 1.5 million transcriptions we’ve done so far. So this group is only a taster – there’s three times as much more material already in the pipeline.

Sesquimillional

Sometimes there is just no word powerful enough to describe the achievements of oldWeather.

Back in March we reached a million, and since then we’ve powered on from that milestone, now having added an additional five hundred thousand observations to our tally. That’s two new observations every minute, night and day, 7 days a week: Come rain or shine; snow or sleet; ice, fire, or fog.

The Weather of HMS Beagle

As I’ve mentioned previously, last Thursday I was warm up man for Charles Darwin and Robert Fitroy (finally, a job truly worthy of oldWeather) – I was giving a talk about the project at the Progress Theatre in Reading.

HMS Beagle isn’t (yet) one of our ships, the observations from her 1831-6 circumnavigation had been rescued before oldWeather started; but I could use what I’ve learned from analysing the oldWeather observations to show the route of the ship, the weather they experienced, and the effect of their observations on our reanalyses for the period.

The route of HMS Beagle, and the value of her weather observations. The inset graph show the Beagle's pressure observations (as black dots), and the analysed mean-sea-level-pressure (from scout run 3.3.8 of the Twentieth Century Reanalysis): The pale blue band gives the range of first-guess pressure estimates (at the location of the ship), and the dark blue band the analysis rage. The dark band is consistently narrower than the light one, showing the more precise estimates of the weather obtained by assimilating the observations.

Uncertainty uncertainty

The answer, as we know, is 42 – but does that mean that it’s exactly 42; or somewhere between 41.5 and 42.5; or is 42 just a ball-park estimate, and the answer could actually be, say, 37?

The value of science is its power to generate new knowledge about the world, but a key part of the scientific approach is that we care almost as much about estimating the accuracy of our new knowledge as about the new knowledge itself. This is certainly my own experience: I must have spent more time calculating how wrong I could be – estimating uncertainty ranges on my results – than on anything else.

One reason I like working with the 20th Century Reanalysis (20CR) is that it comes with uncertainty ranges for all of its results. It achieves this by being an ensemble analysis – everything is calculated 56 times, and the mean of the 56 estimates is the best estimate of the answer, while their standard deviation provides an uncertainty range. This uncertainty range is the basis for our calculation of the ‘fog of ignorance‘.

We are testing the effects of the new oldWeather observations on 20CR – by doing parallel experiments reconstructing the weather with and without the new observations. We have definitely produced a substantial improvement, but to say exactly how much of an improvement, where, and when, requires careful attention to the uncertainty in the reconstructions. In principle it’s not that hard: if the uncertainty in the reanalysis including the oldWeather observations is less than the uncertainty without the new observations, then we’ve produced an improvement (there are other possible improvements too, but let’s keep it simple). So I calculated this, and it looked good. But further checks turned up a catch: we don’t know the uncertainty in either case precisely, we only have an estimate of it, so any improvement might not be real – it might be an artefact of the limitations of our uncertainty estimates.

To resolve this I have entered the murky world of uncertainty uncertainty. If I can calculate the uncertainty in the uncertainty range of each reanalysis, I can find times and places where the decrease in uncertainty between the analysis without and with the oldWeather observations is greater than any likely spurious decrease from the uncertainty in the uncertainty. (Still with me? Excellent). These are the times and places where oldWeather has definitely made things better. In principle this calculation is straightforward – I just have to increase the size of the reanalysis ensemble: so instead of doing 56 global weather simulations we do around 5600; I could then estimate the effect of being restricted to only 56. However, running a global weather simulation uses quite a bit of supercomputer time; running 56 of them requires a LOT of supercomputer time; and running 5600 of them is – well, it’s not going to happen.

So I need to do something cleverer. But as usual I’m not the first person to hit this sort of problem, so I don’t have to be clever myself – I can take advantage of a well-established general method for faking large samples when you only have small ones – a tool with the splendid name of the bootstrap. This means estimating the 5600 simulations I need by repeatedly sub-sampling from the 56 simulations I’ve got. The results are in the video below:

Yellow=better, red=worse (well, approximately). Yellow dots mark the new observations provided by oldWeather.


By bootstrapping, we can estimate a decrease in uncertainty that a reanalysis not using the oldWeather observations is unlikely to reach just by chance (less than 2.5% chance). Where a reanalysis using the oldweather observations has a decrease in uncertainty that’s bigger than this, it’s likely that the new observations caused the improvement. The yellow highlight in this video marks times and places where this happens. We can see that the regions of improvement show a strong tendency to cluster around the new oldweather observations (shown as yellow dots) – this is what we expect and supports the conclusion that these are mostly real improvements.

It’s also possible, though unlikely, that adding new observations can make the reanalysis worse (increase in estimated uncertainty). The bootstrap also gives an increase in uncertainty that a reanalysis not using the oldWeather observations is unlikely to reach just by chance (less that 2.5% probable) – the red highlight marks times and places where the reanalysis including the observations has an increase in uncertainty that’s bigger than this. There is much less red than yellow, and the red regions are not usually close to new observations, so I think they are spurious results – places where the this particular reanalysis is worse by chance, rather than systematically made worse by the new observations.

This analysis meets it’s aim of identifying, formally, when and where all our work transcribing new observations has produced improvements in our weather reconstructions. But it is still contaminated with random effects: We’d expect to get spurious red and yellow regions each 2.5% of the time anyway (because that’s the threshold we chose), but there is a second problem: The bootstrapped 2.5% thresholds in uncertainty uncertainty are only estimates – they have uncertainty of their own, and where the thresholds are too low we will get too much highlighting (both yellow and red). To quantify and understand this we need to venture into the even murkier world of uncertainty uncertainty uncer… .

No – that way madness lies. I’m stopping here.


OK, as you’re in the 0.1% of people who’ve read all the way to the bottom of this post, there is one more wrinkle I feel I must share with you: The quality metric I use for assessing the improvement caused by adding the oW observations isn’t simply the reanalysis uncertainty, it’s the Kullback–Leibler divergence of the climatological PDF from the reanalysis PDF. So for ‘uncertainty uncertainty’ above read ‘Kullback–Leibler divergence uncertainty’. I’d have mentioned this earlier, except that it would have made an already complex post utterly impenetrable, and methodologically it makes no difference, as one great virtue of the bootstrap is that it works for any metric.

In search of lost weather

Imagine you have a free hour, one wet weekend, so you settle down to a little light reading:

That’s 8,000 pages. If you read them all again the following weekend (to catch the subtleties that escaped you the first time), and then again, and again, and again, and again, and again; you’d still be 6,000 pages short of matching the work we’ve done reading the logbooks of USS Bear.

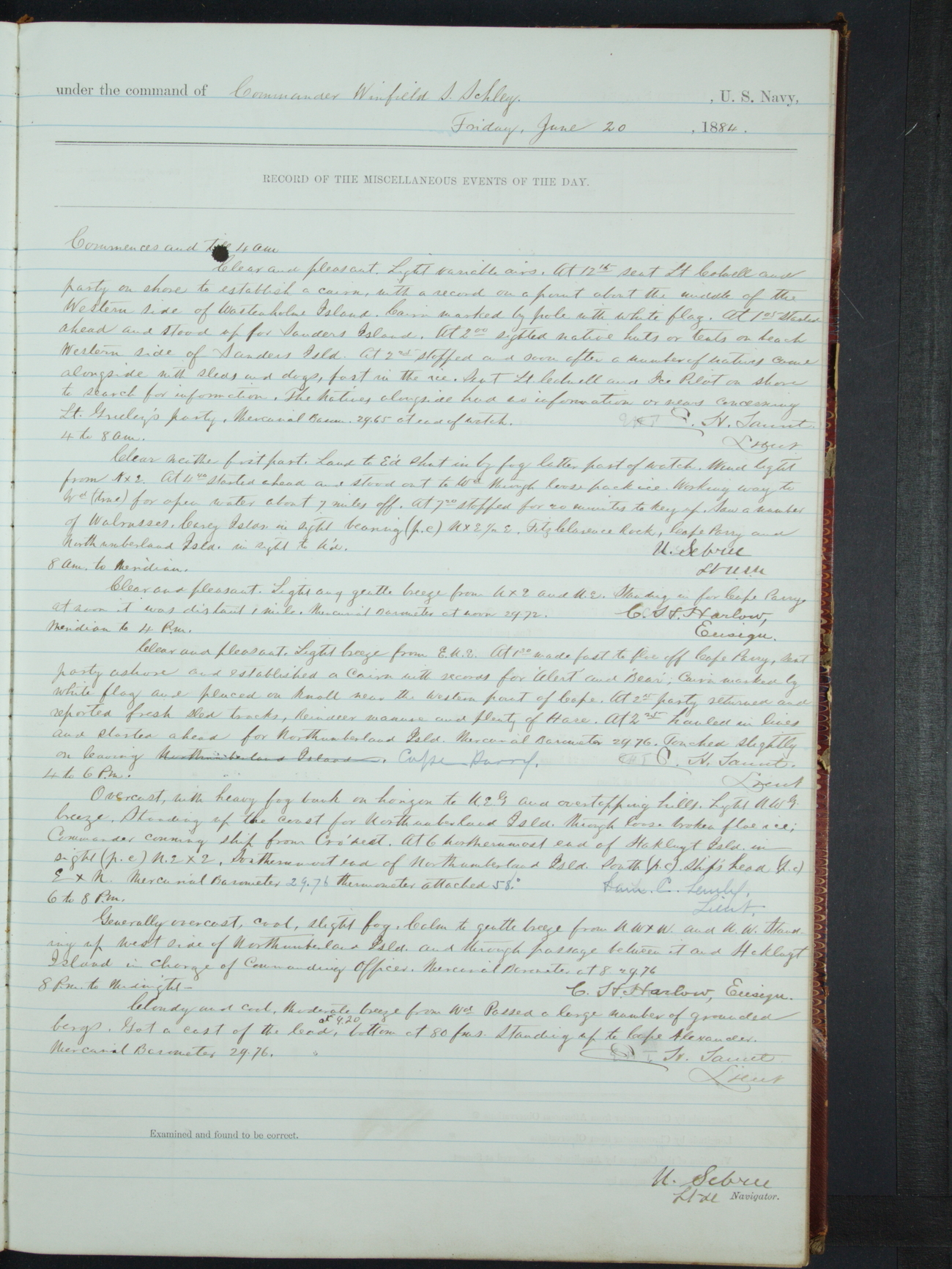

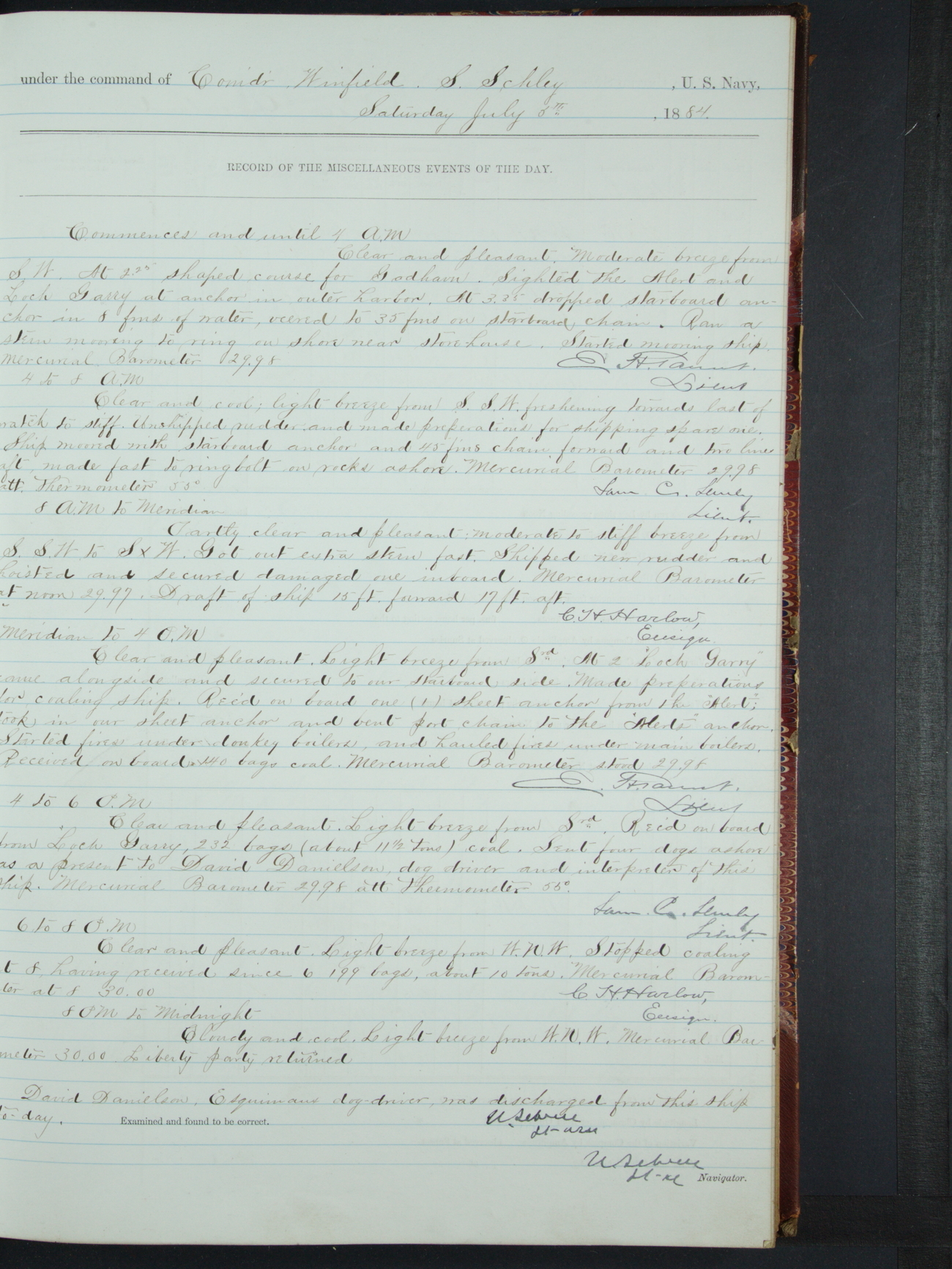

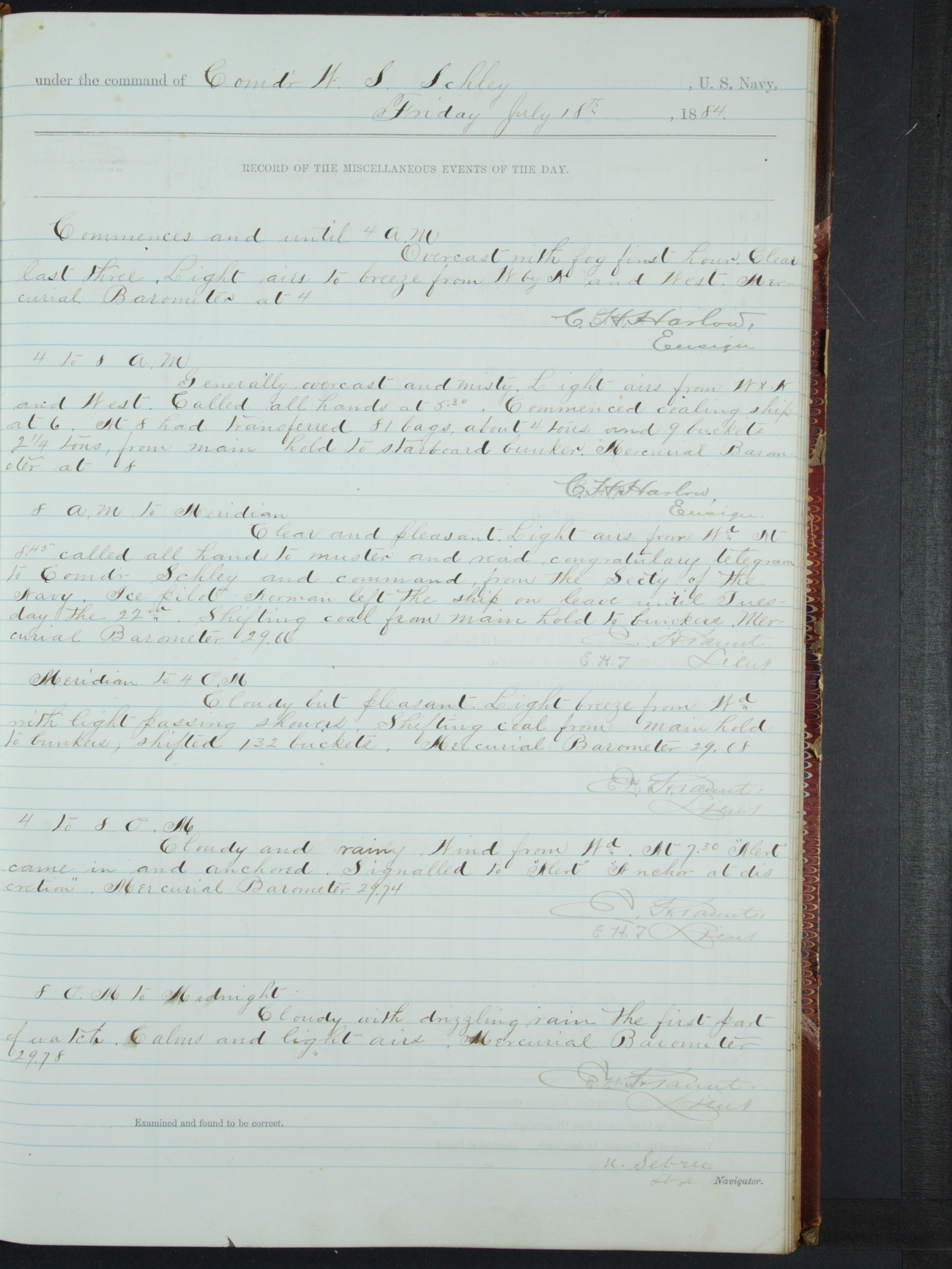

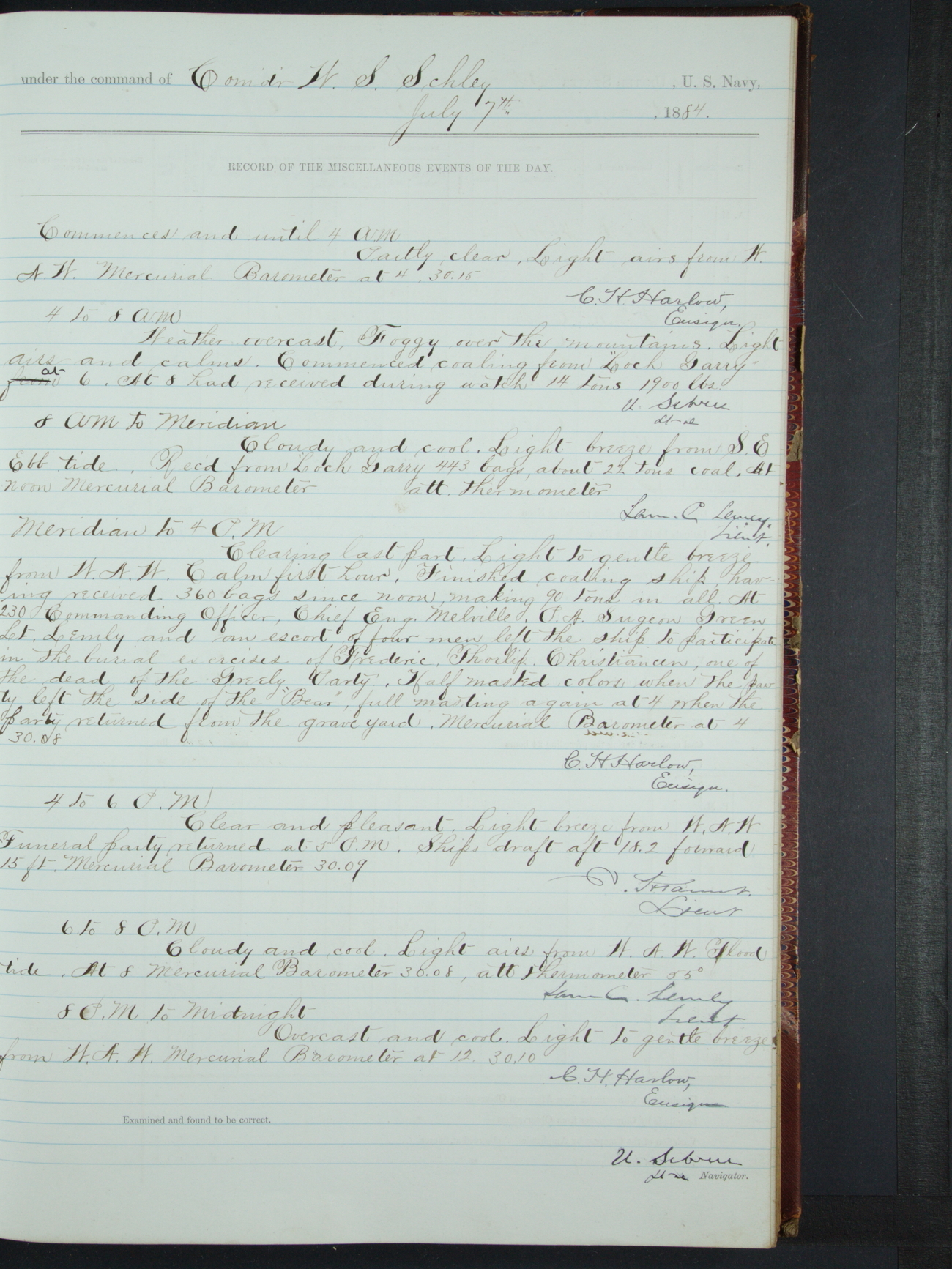

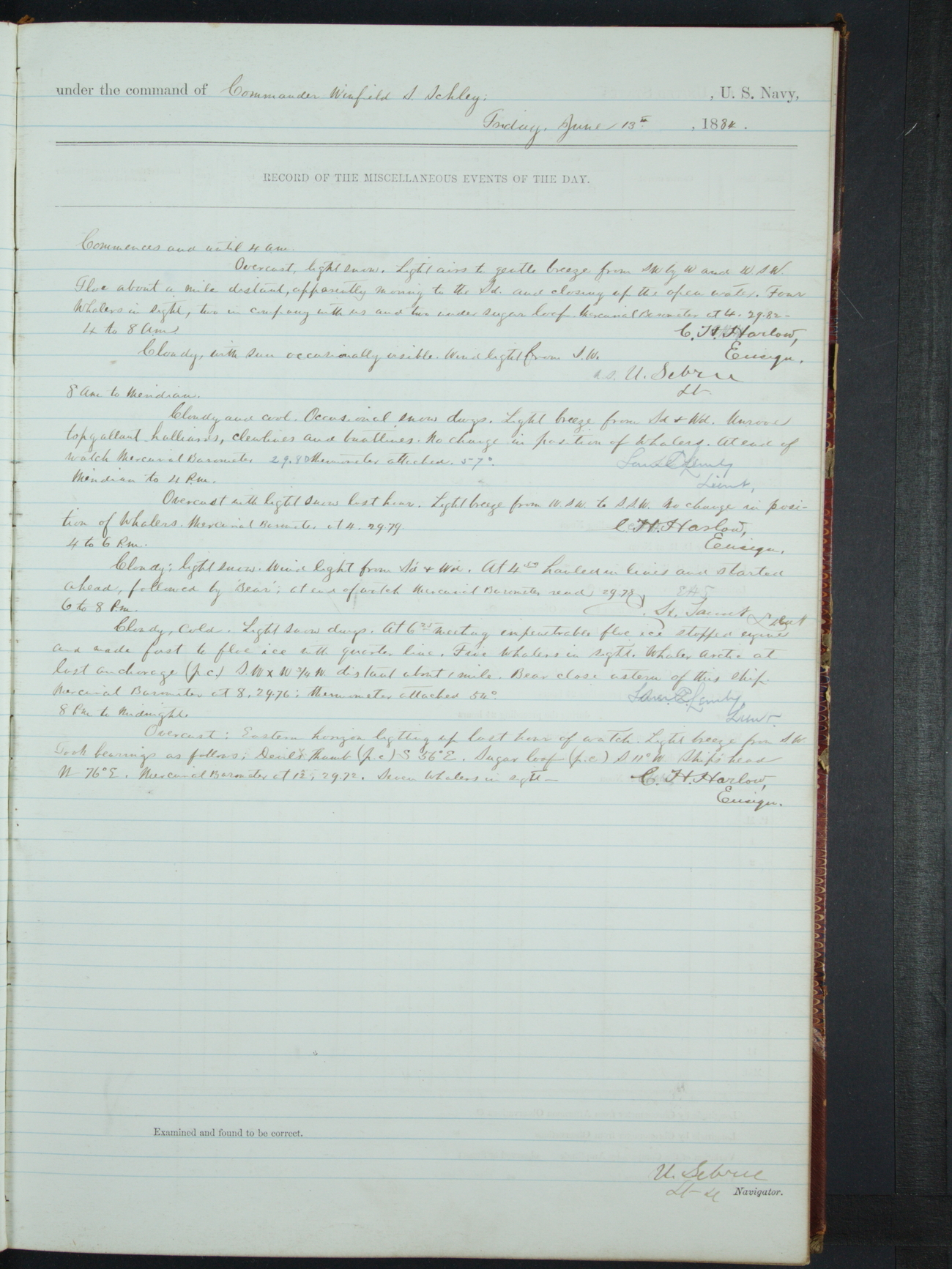

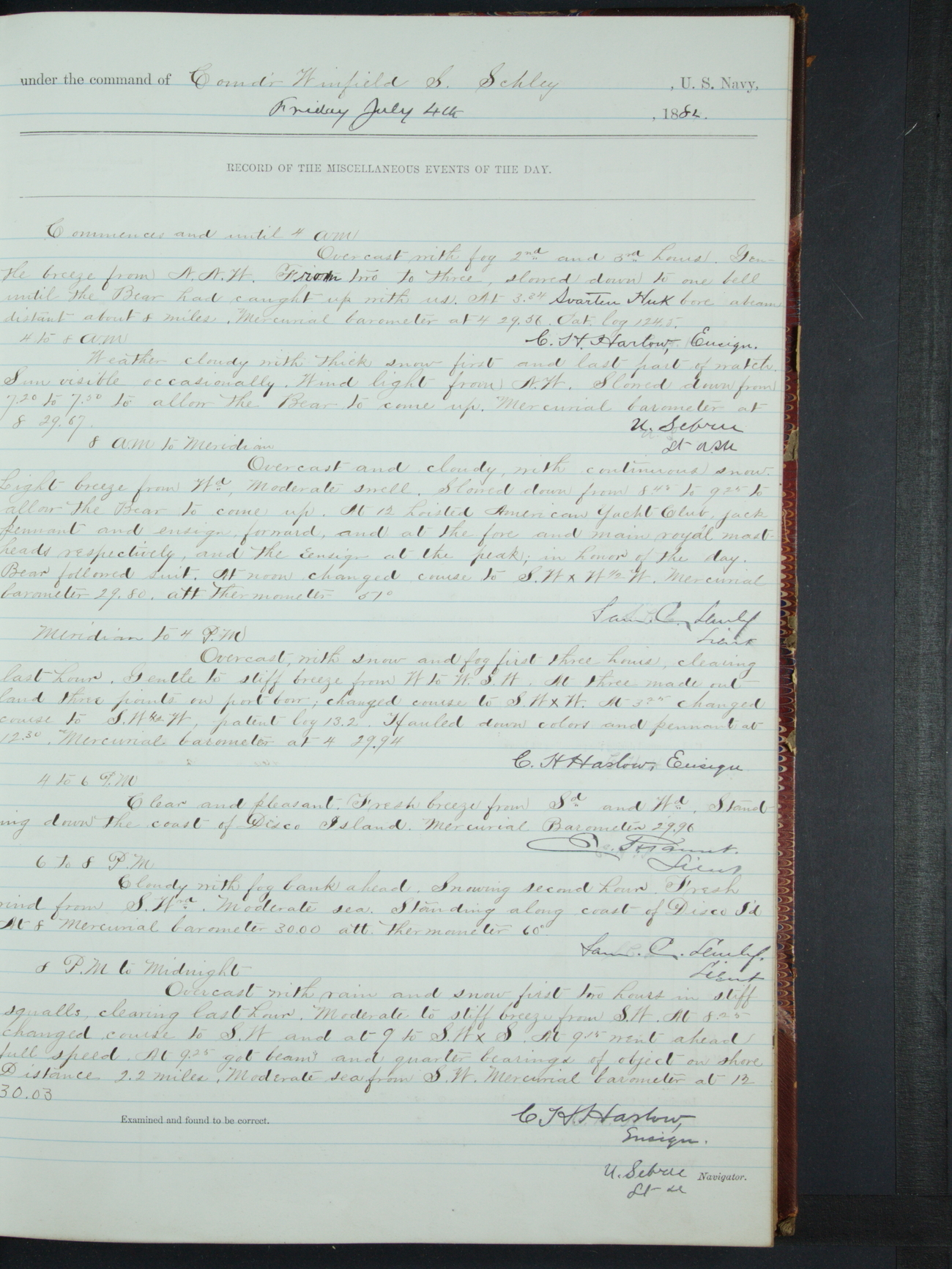

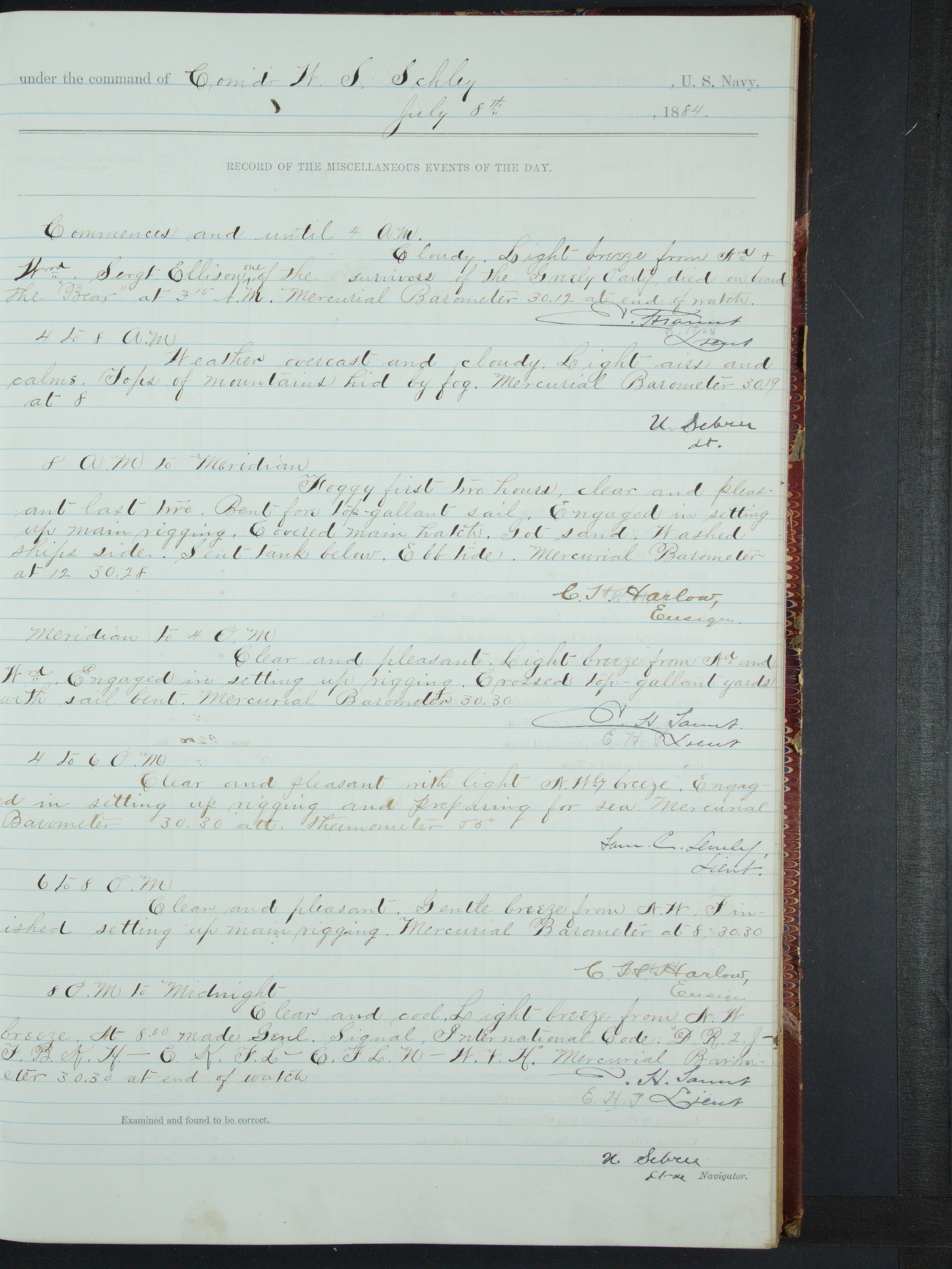

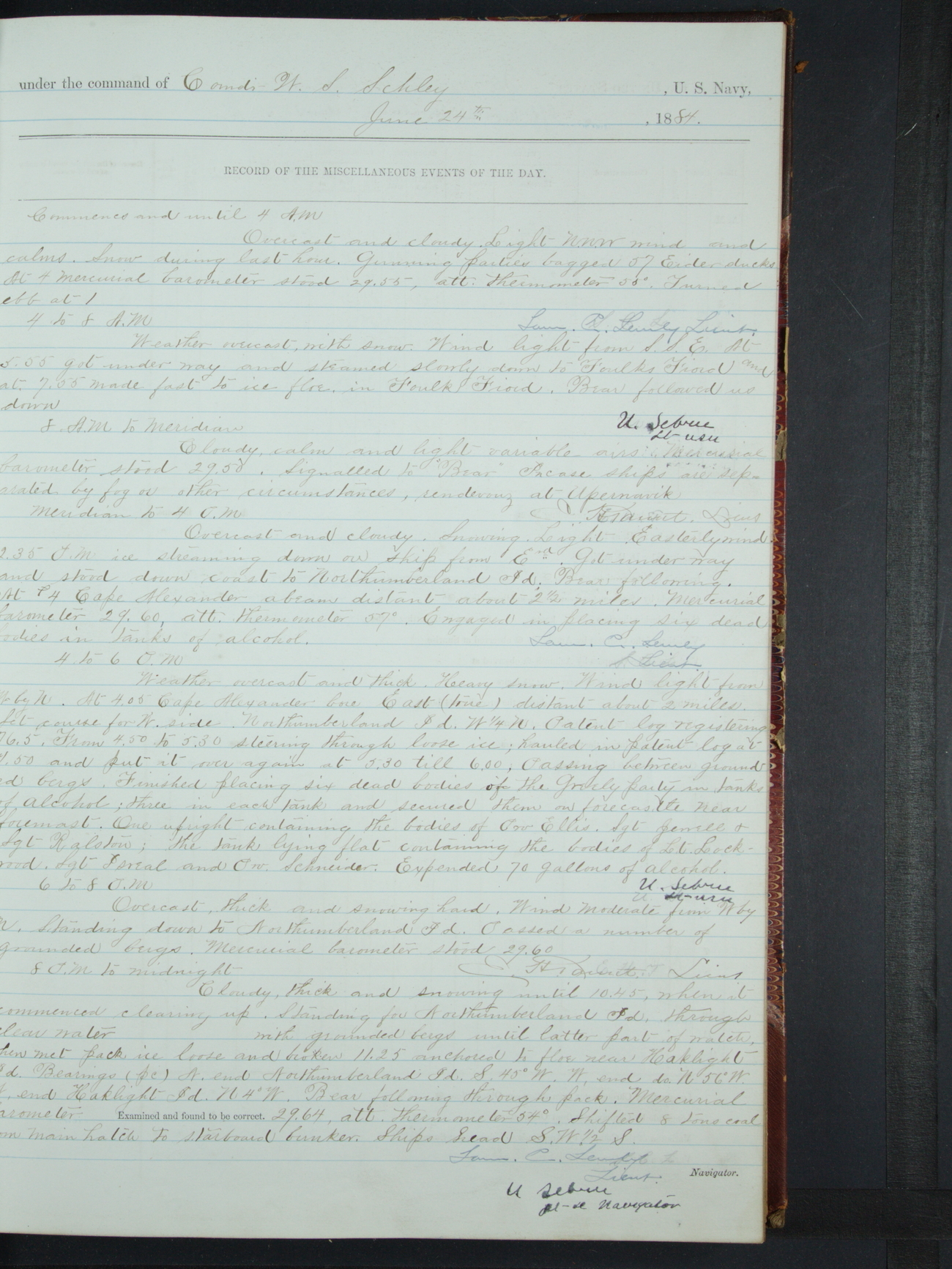

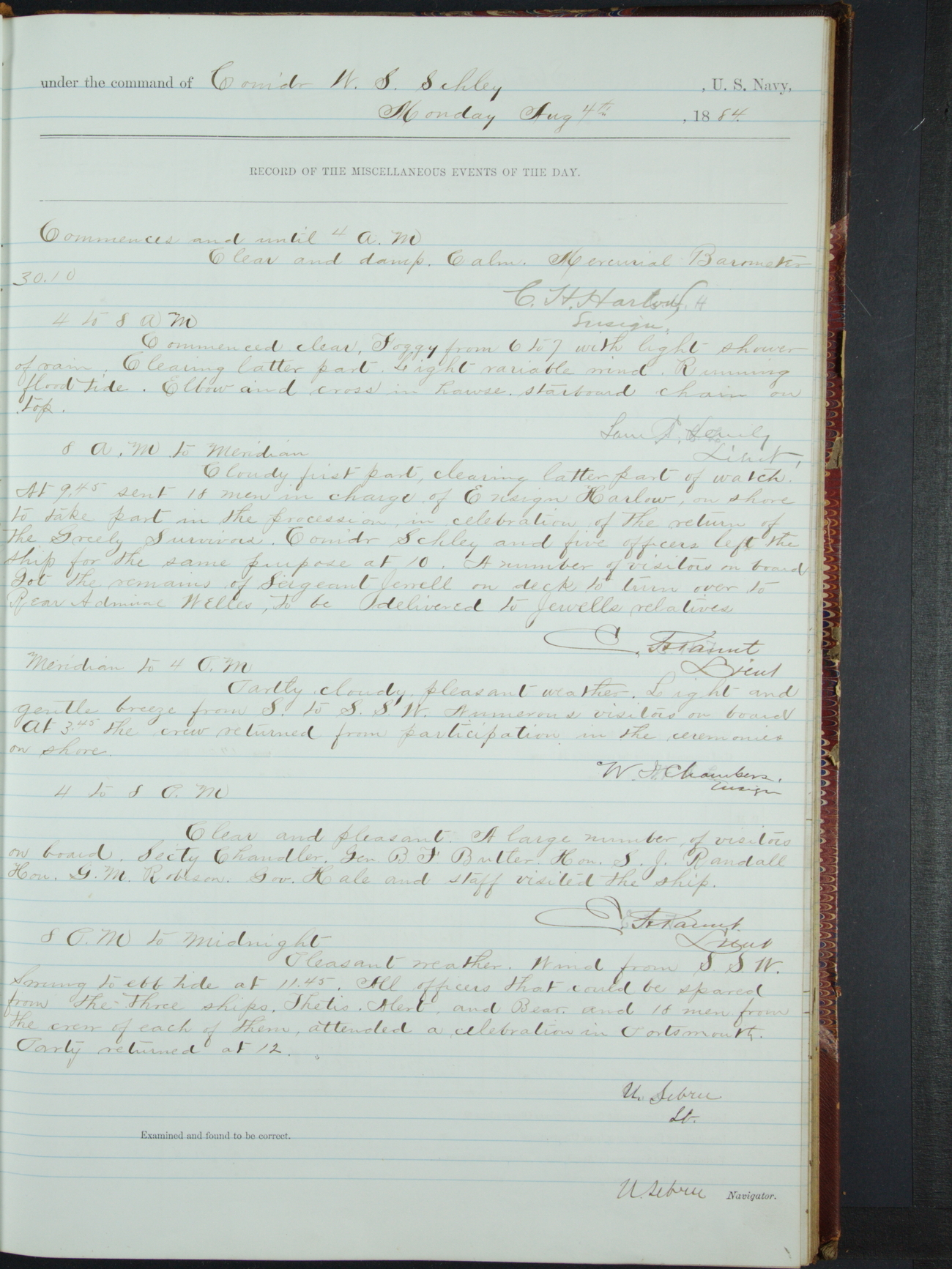

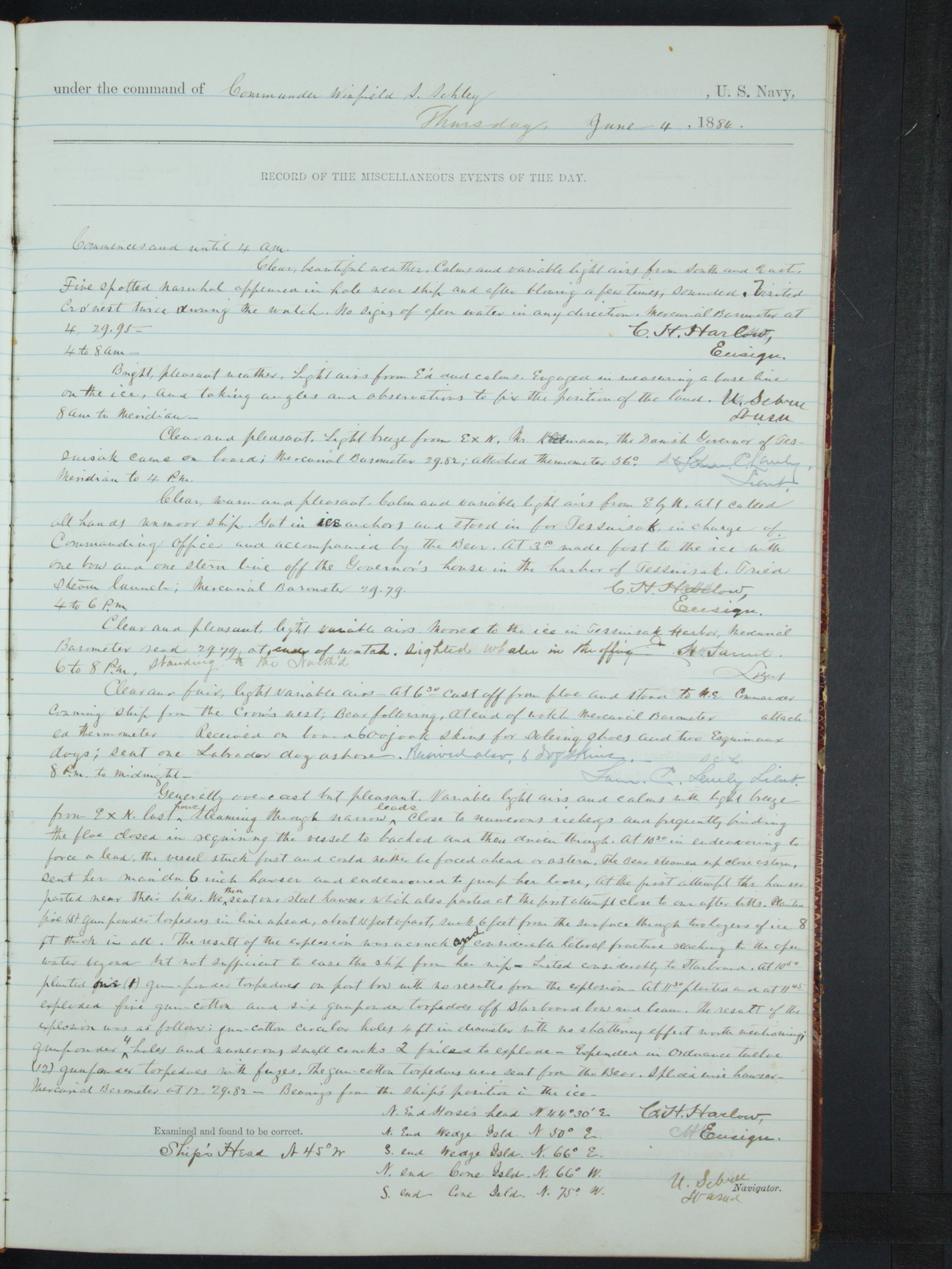

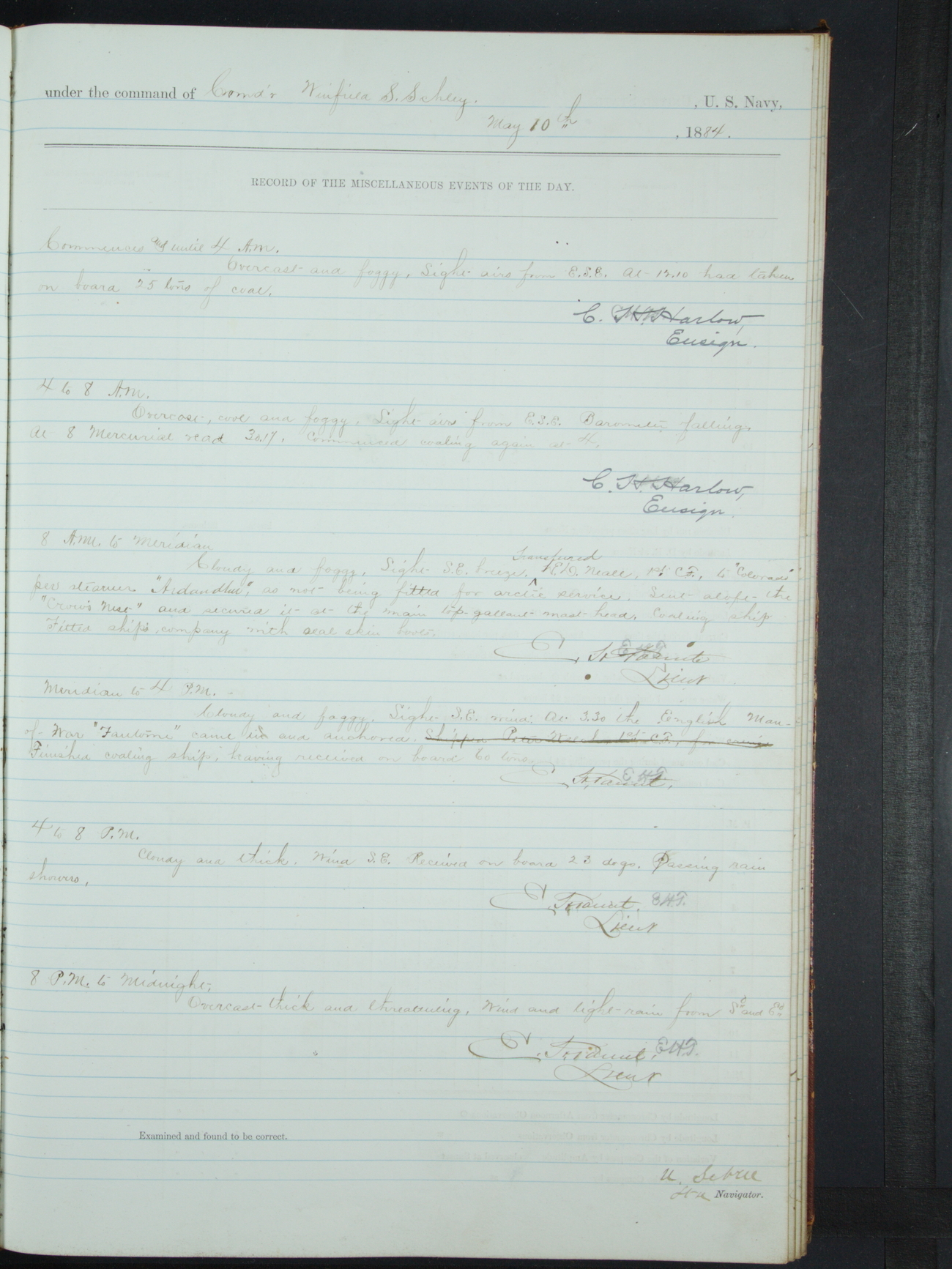

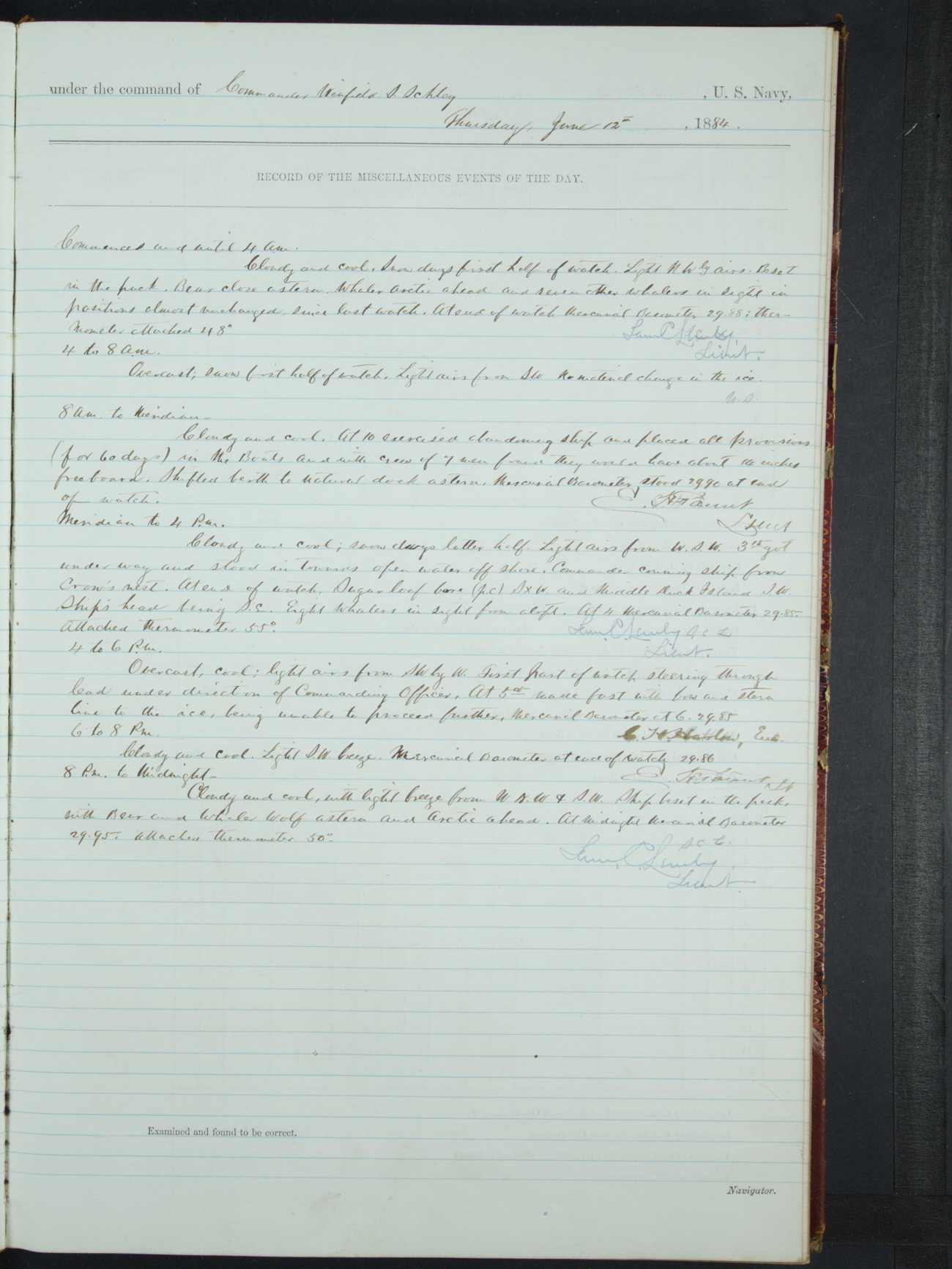

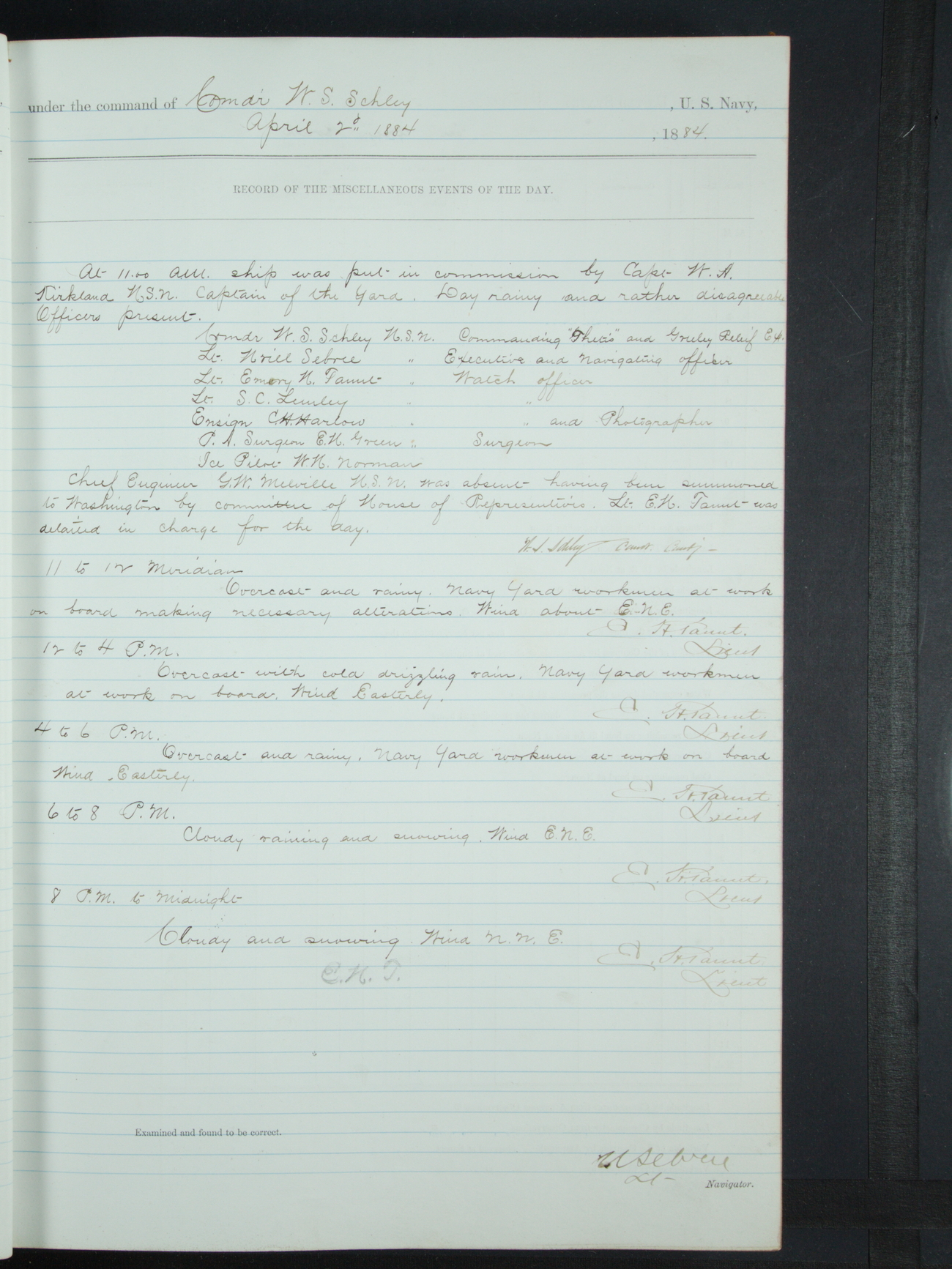

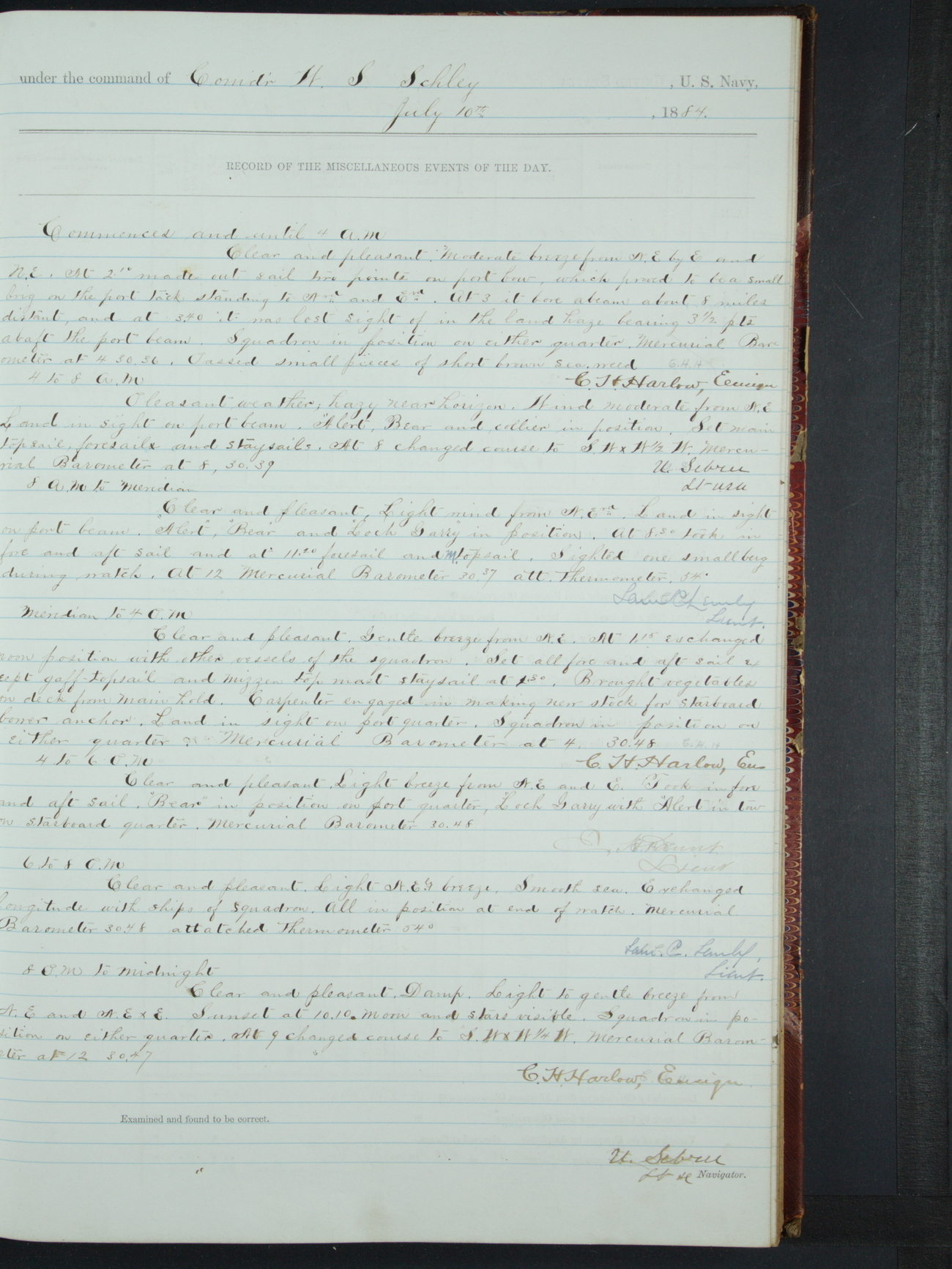

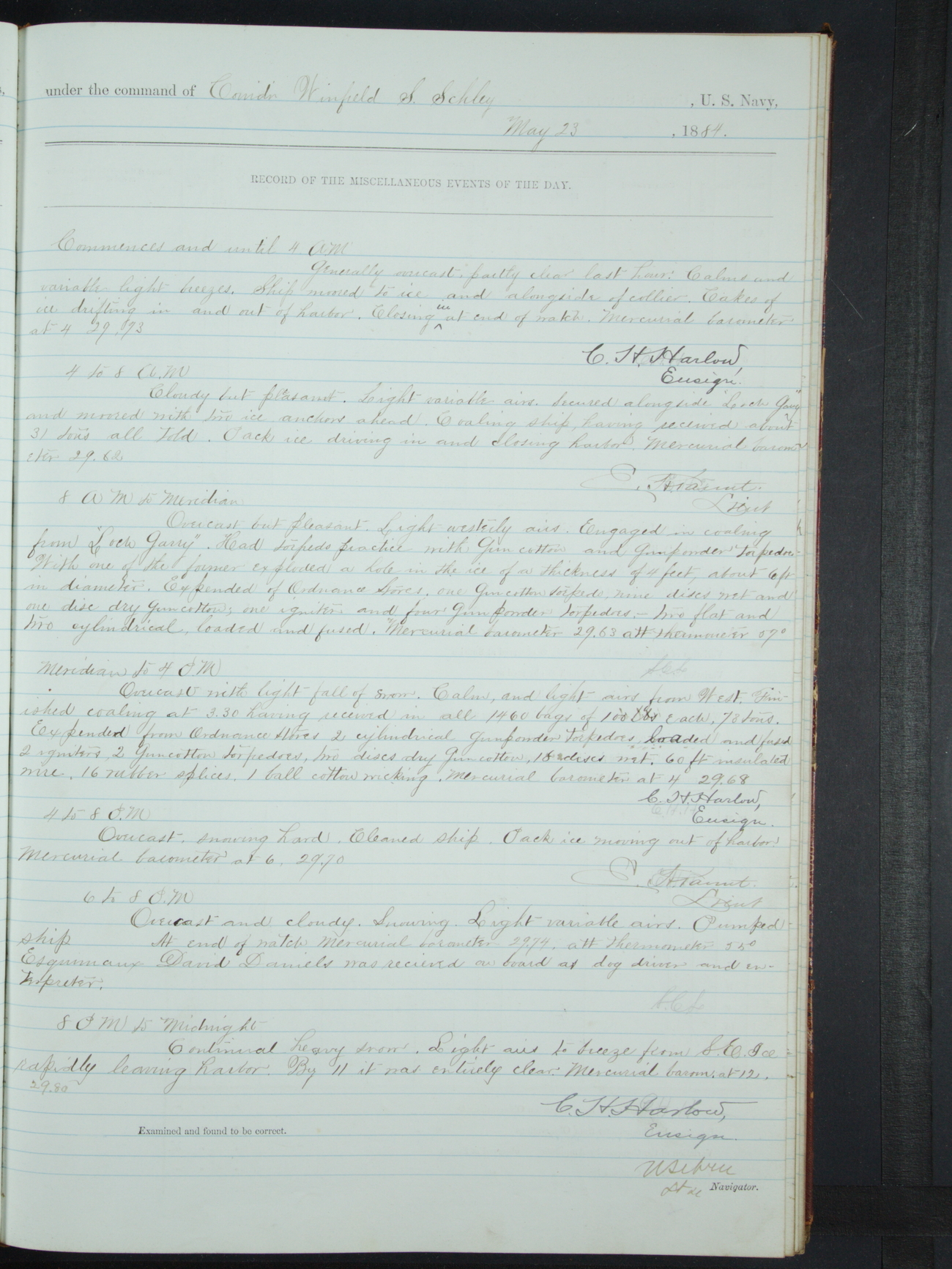

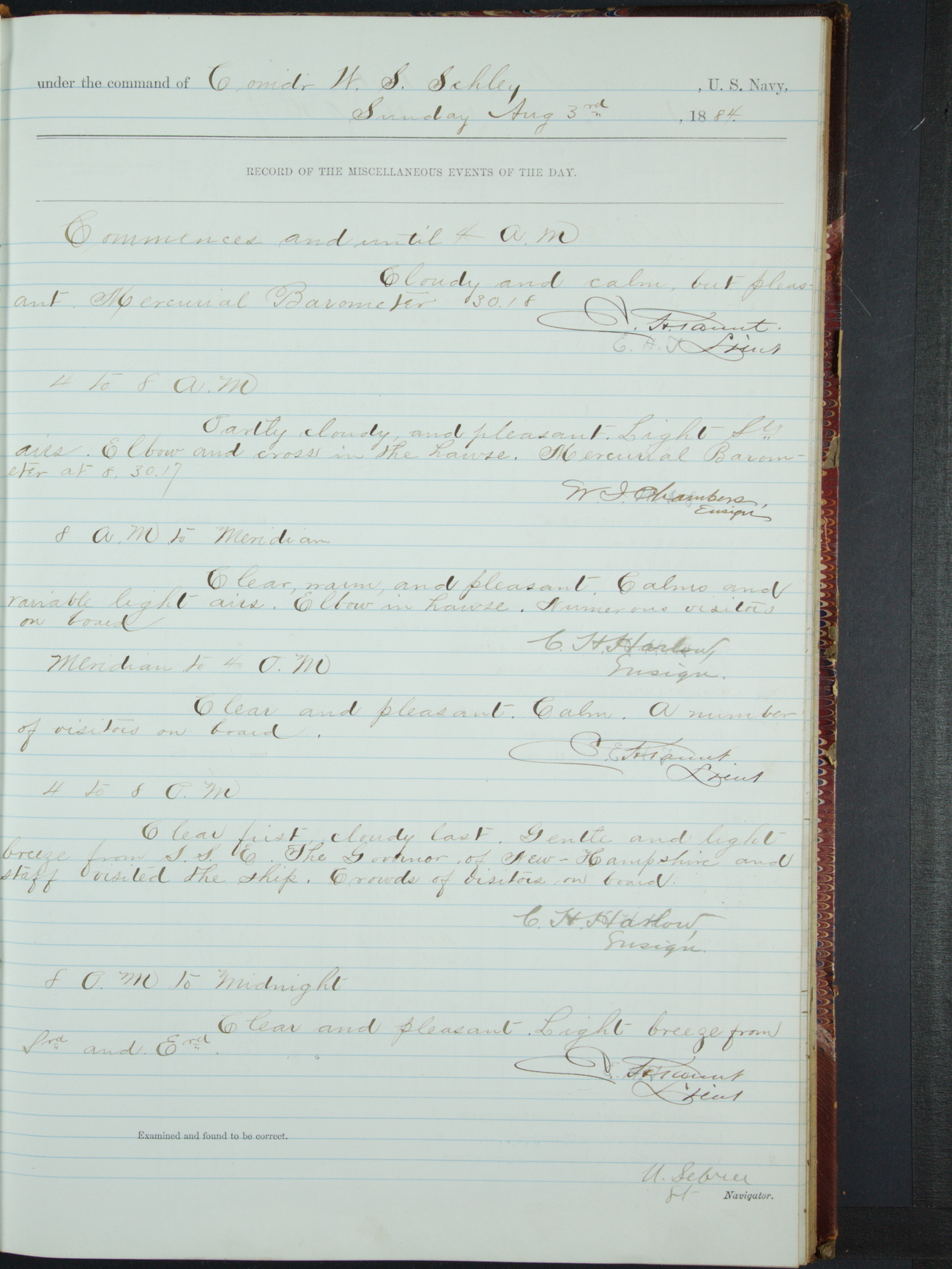

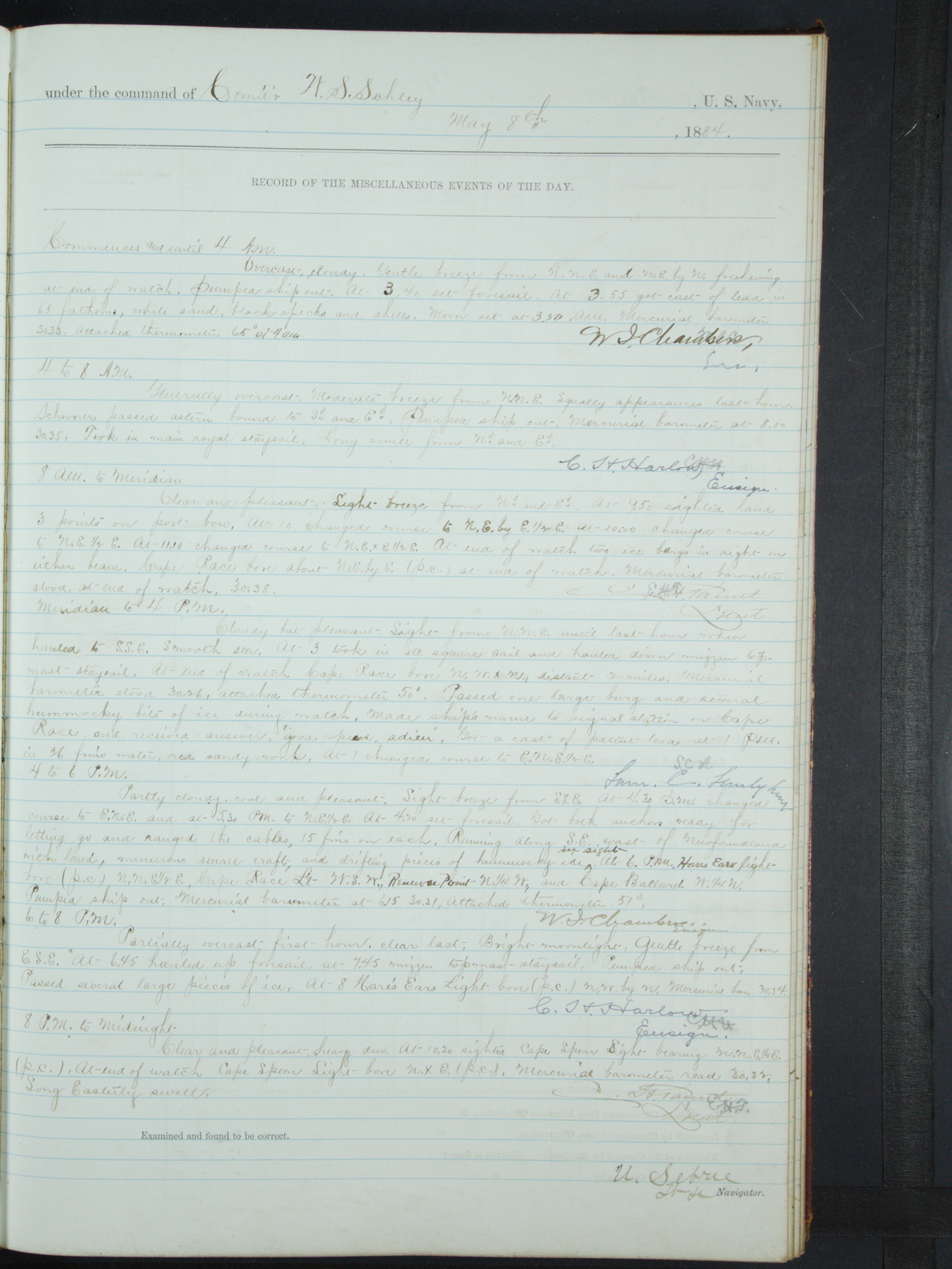

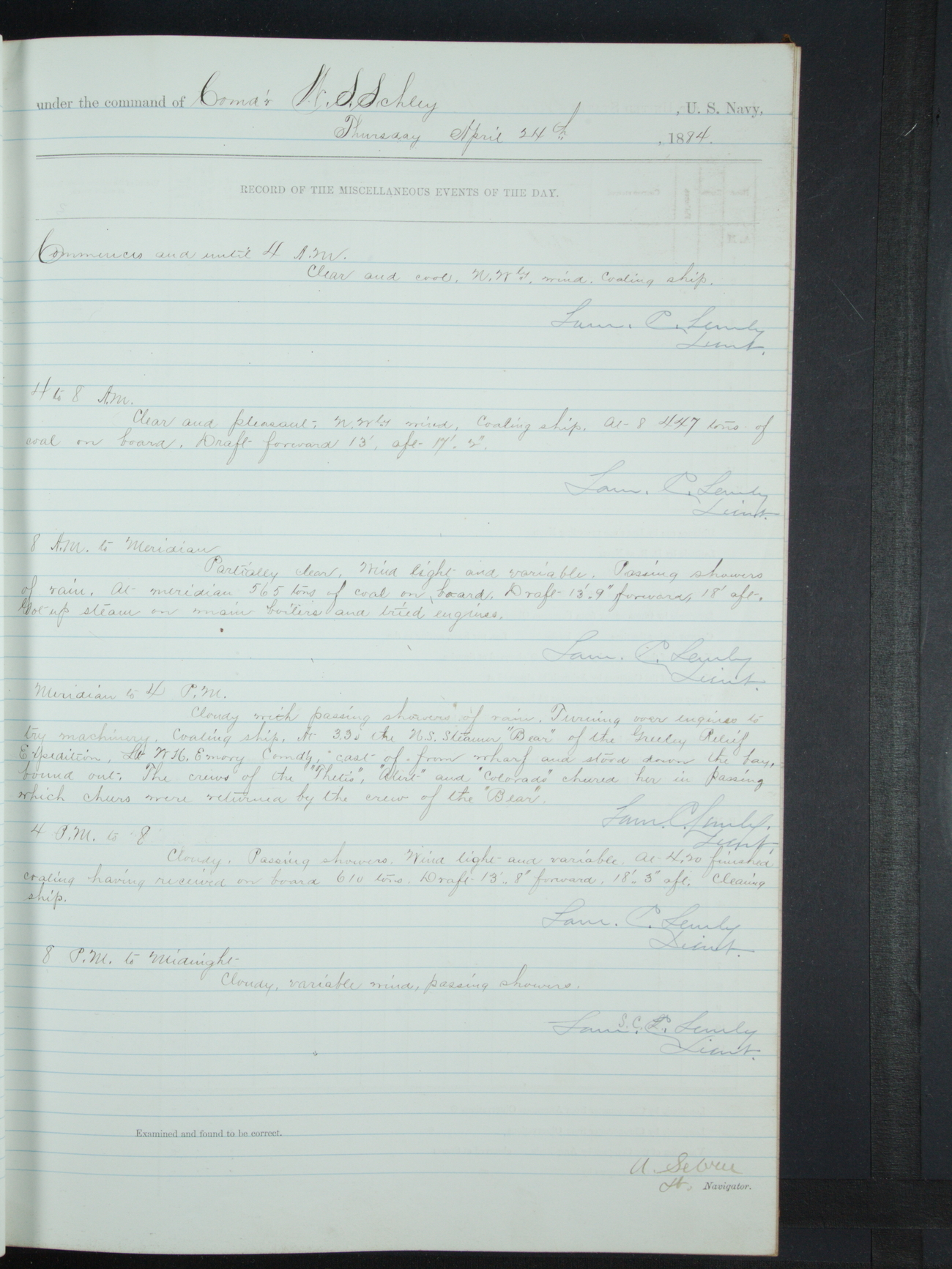

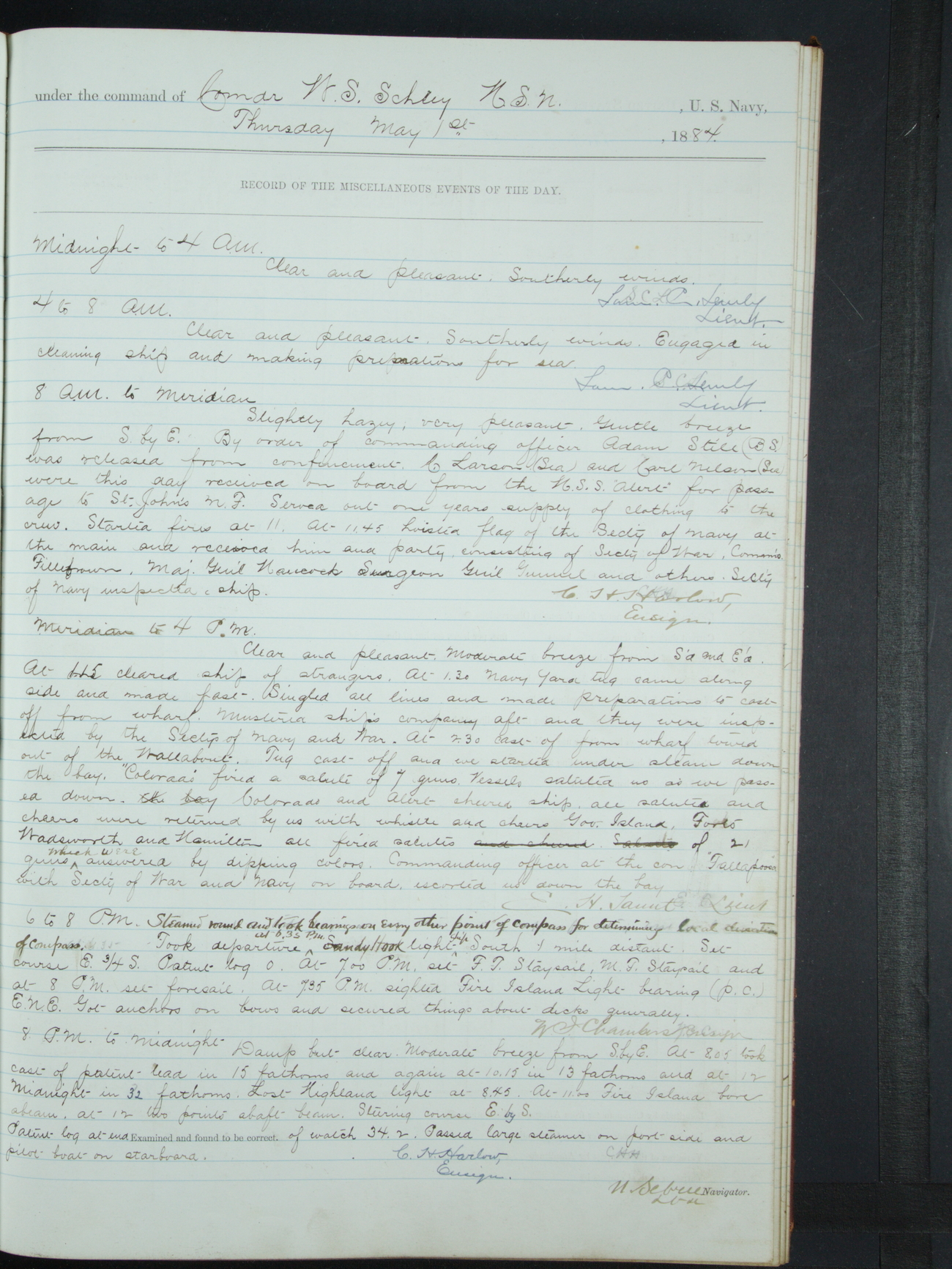

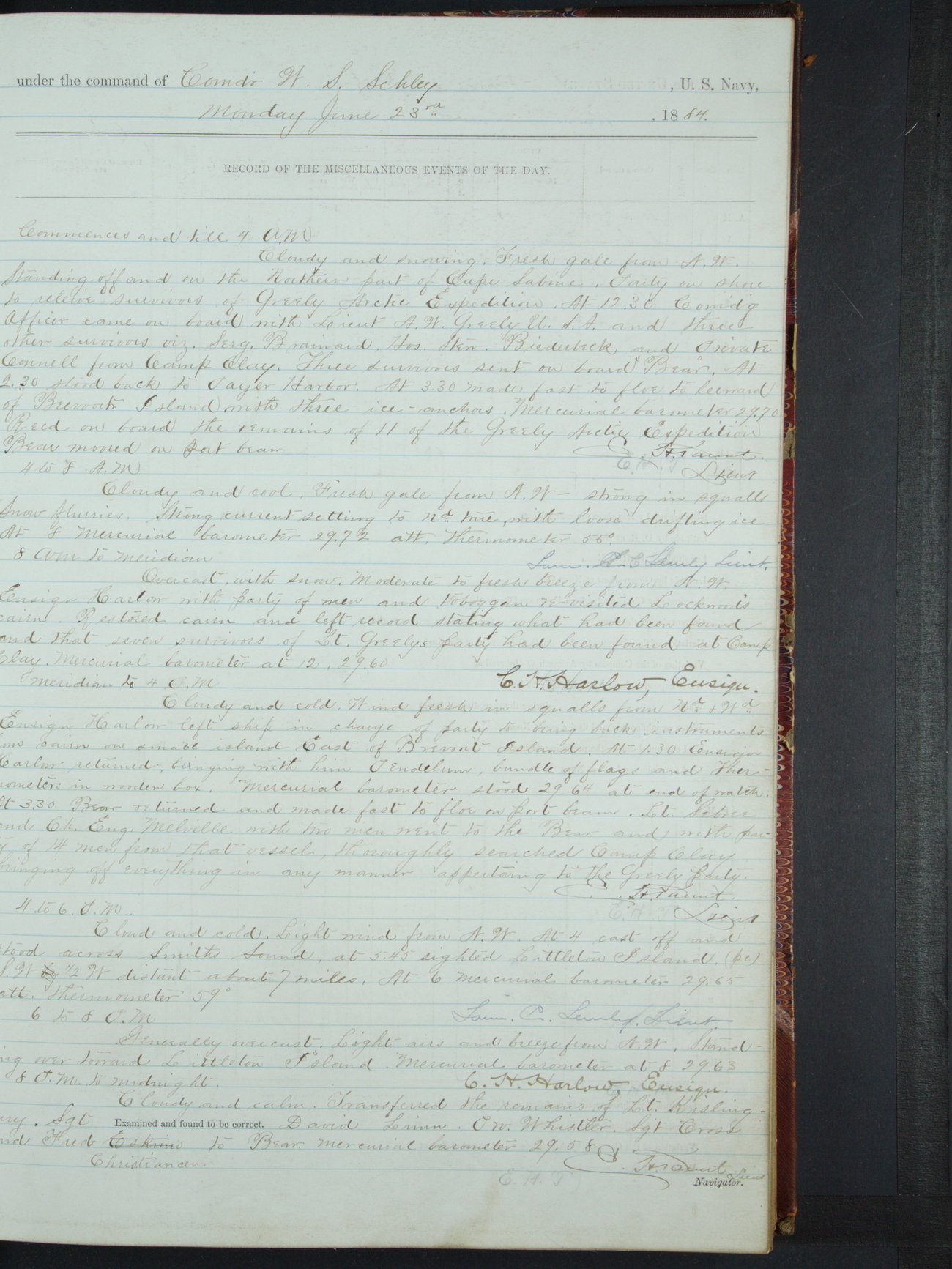

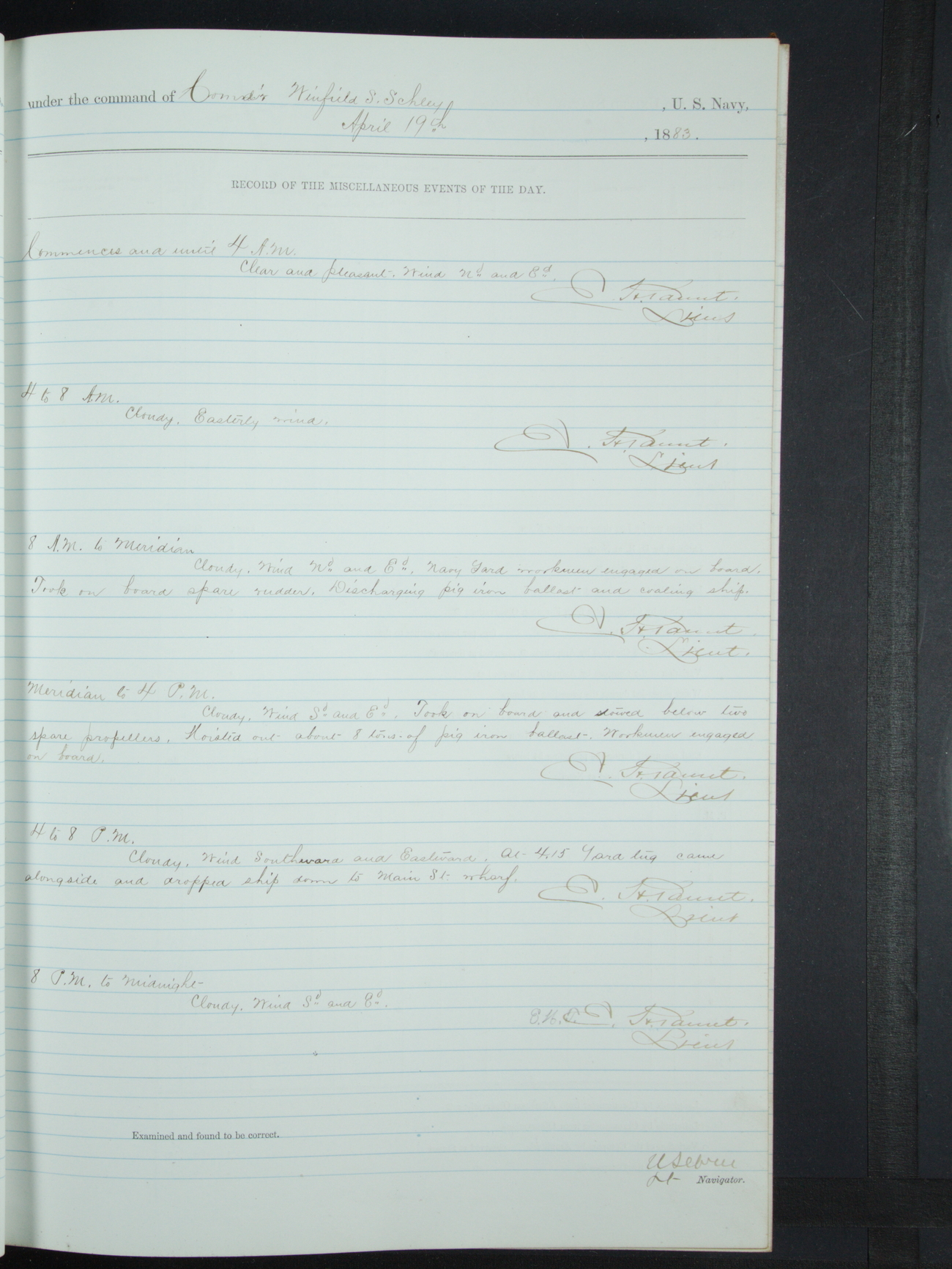

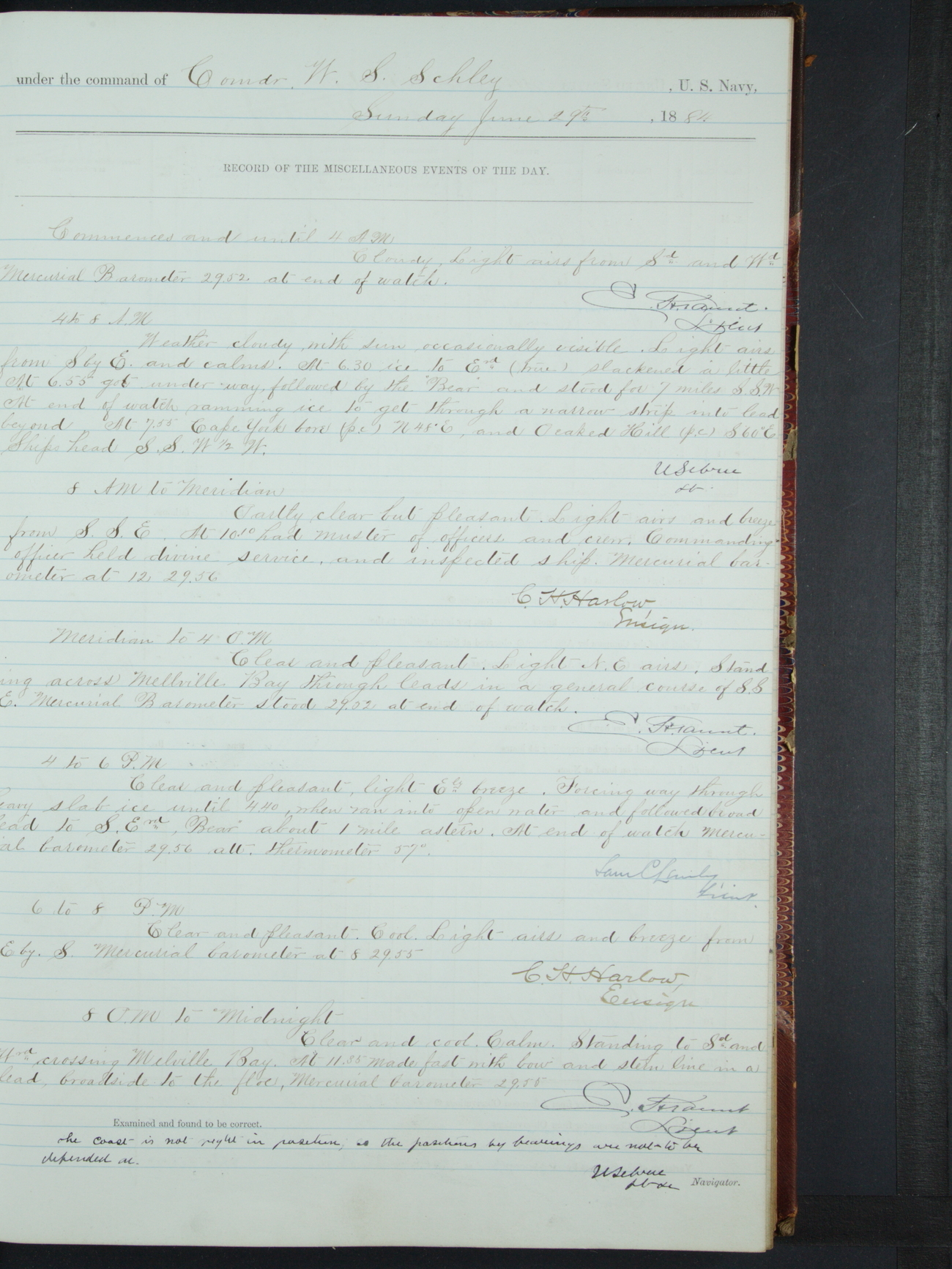

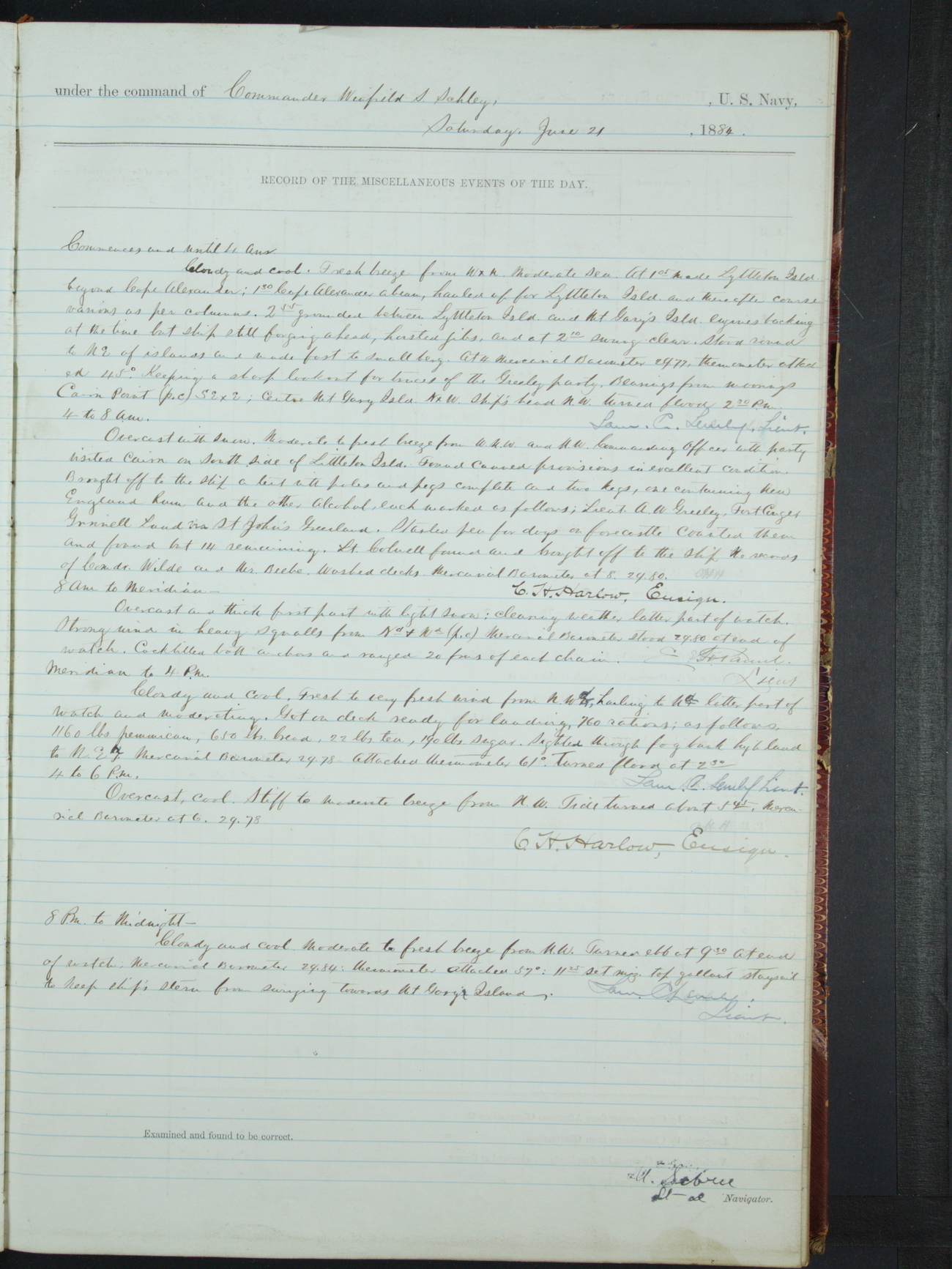

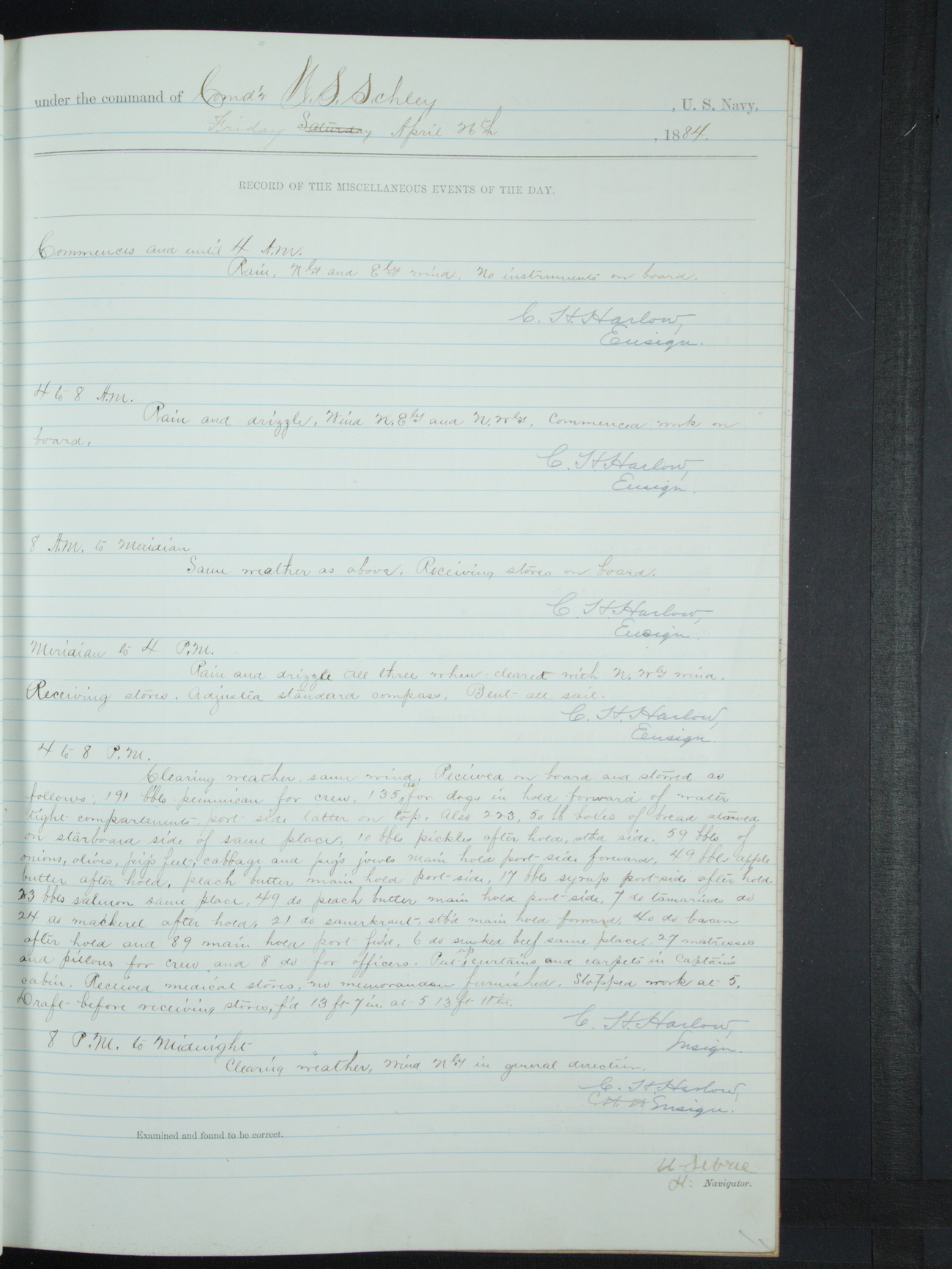

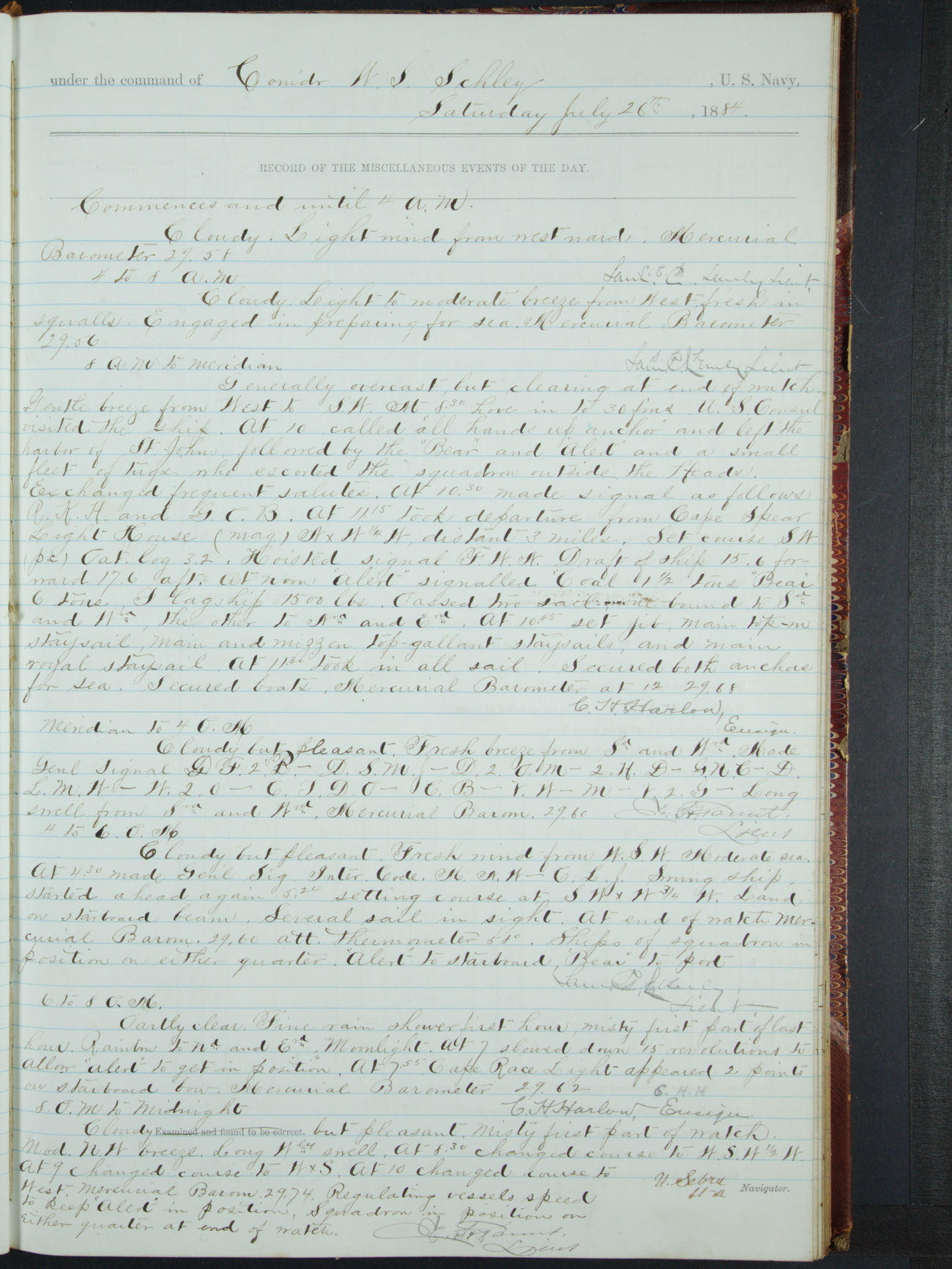

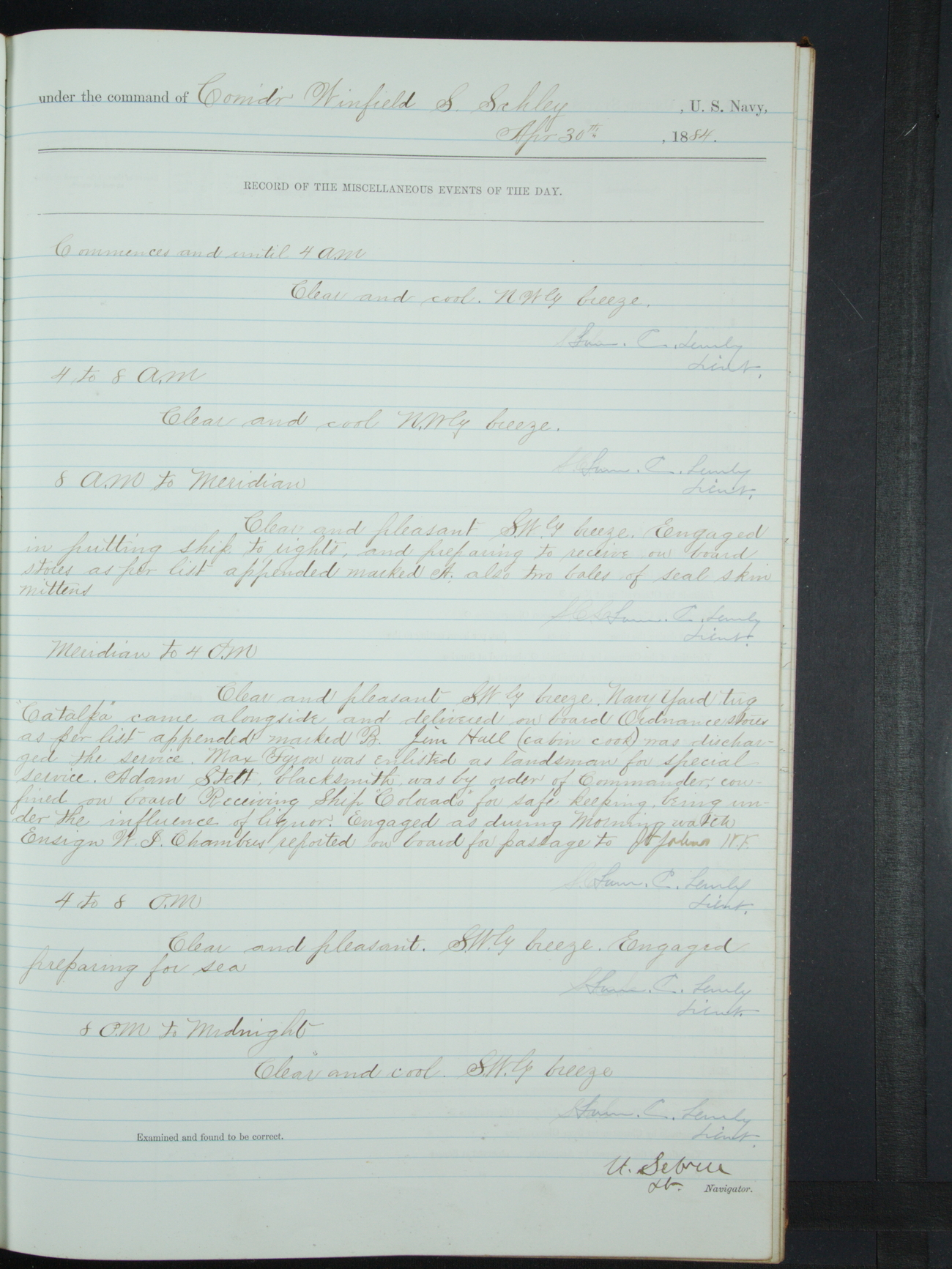

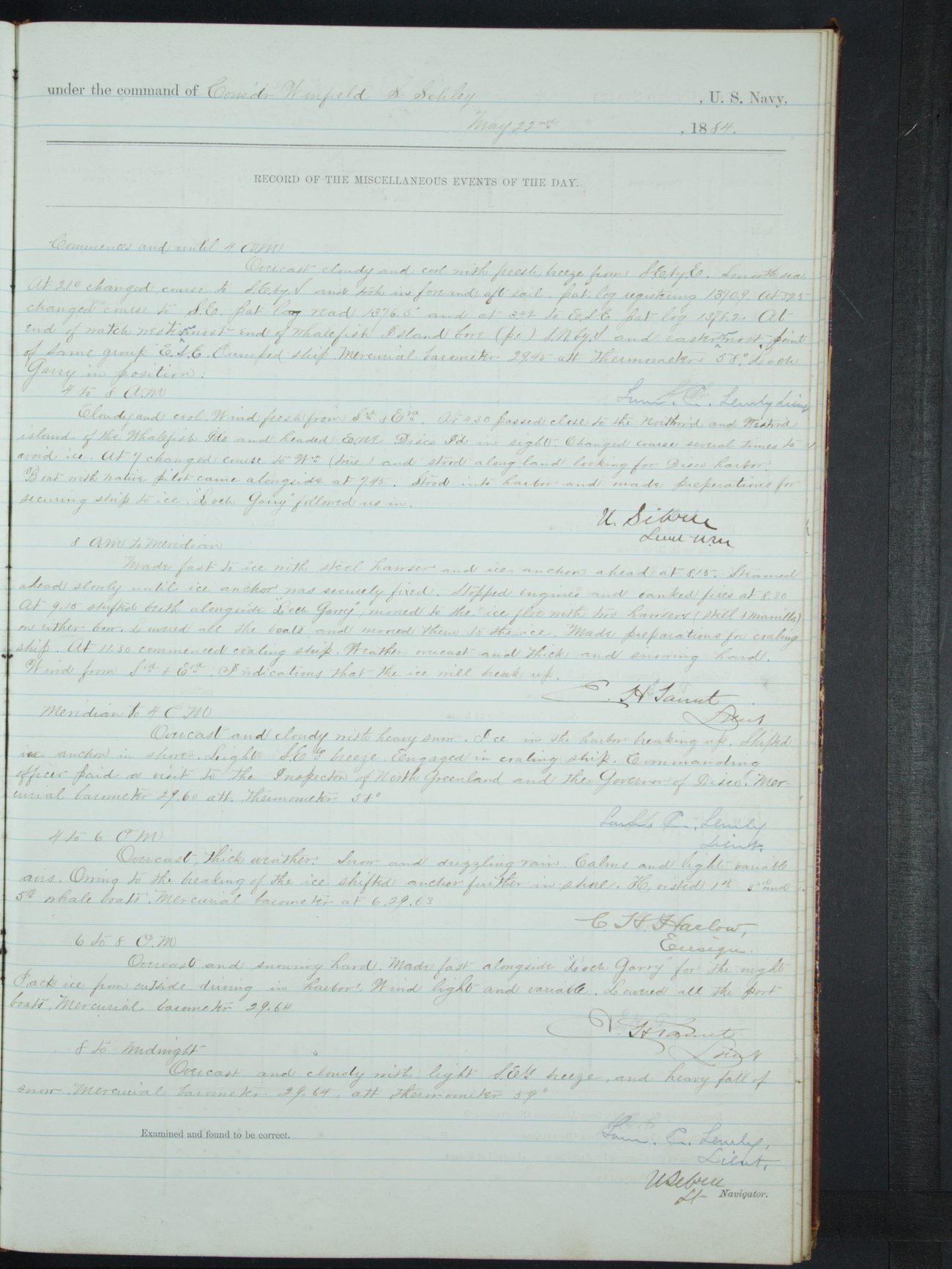

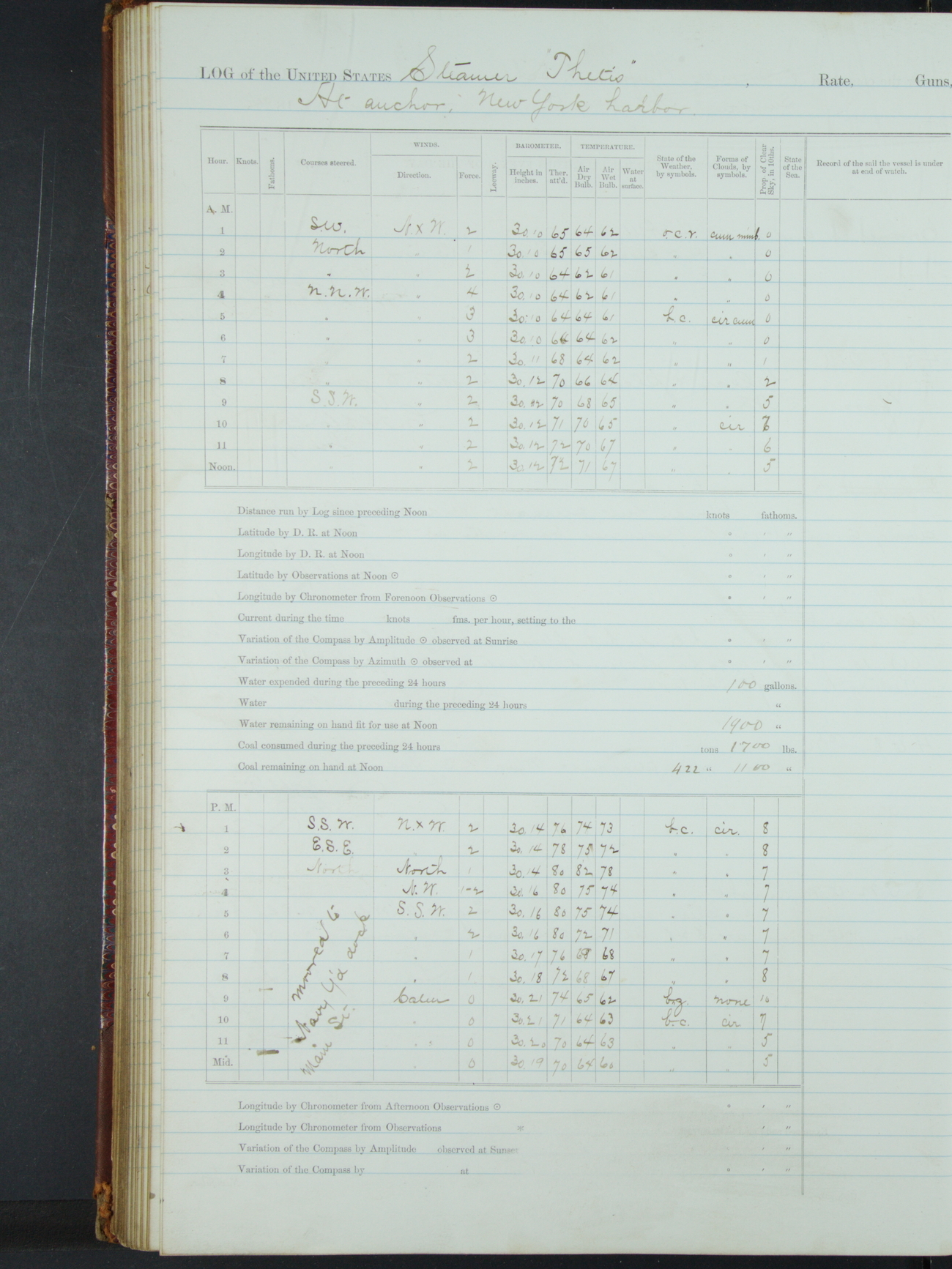

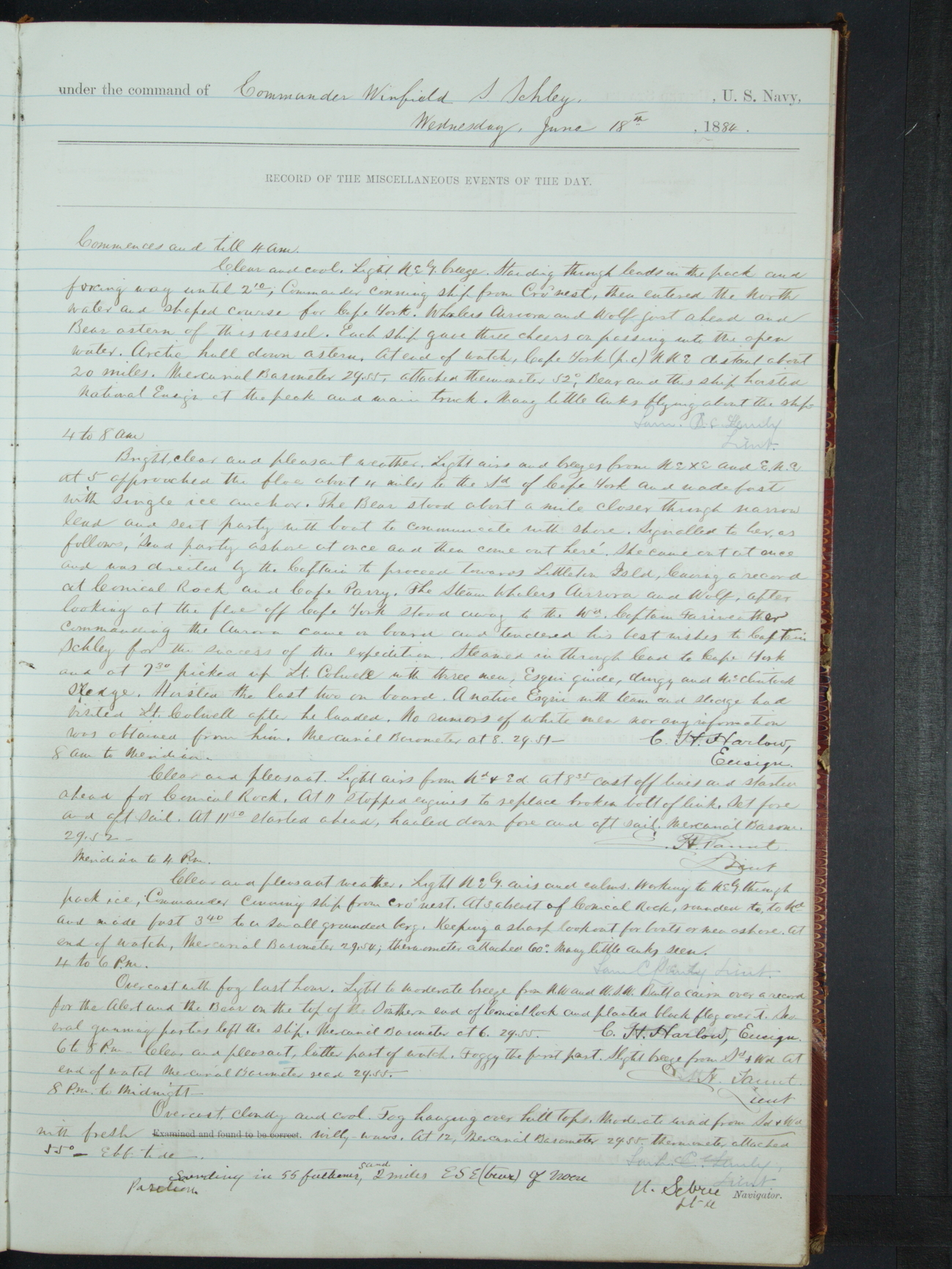

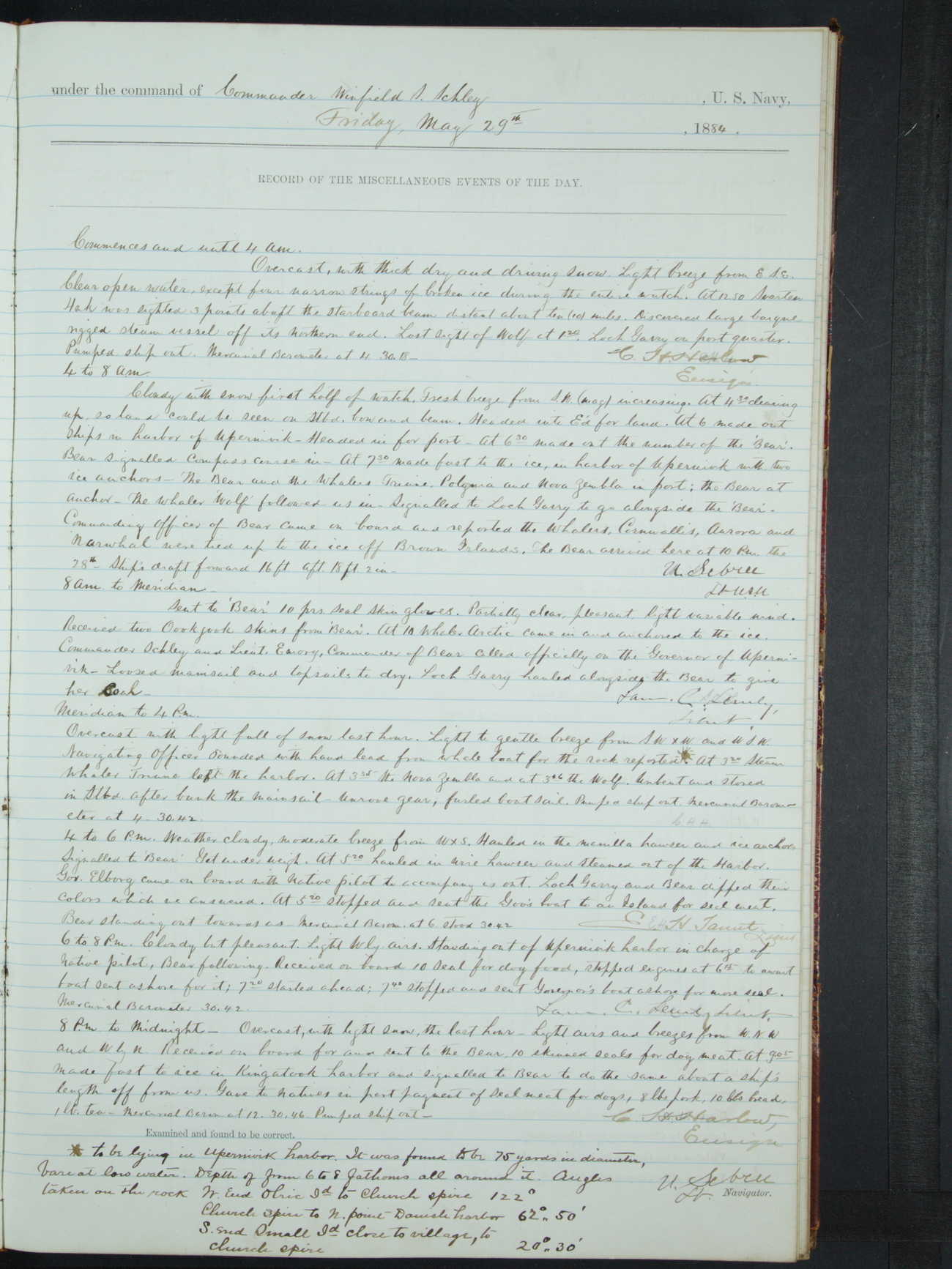

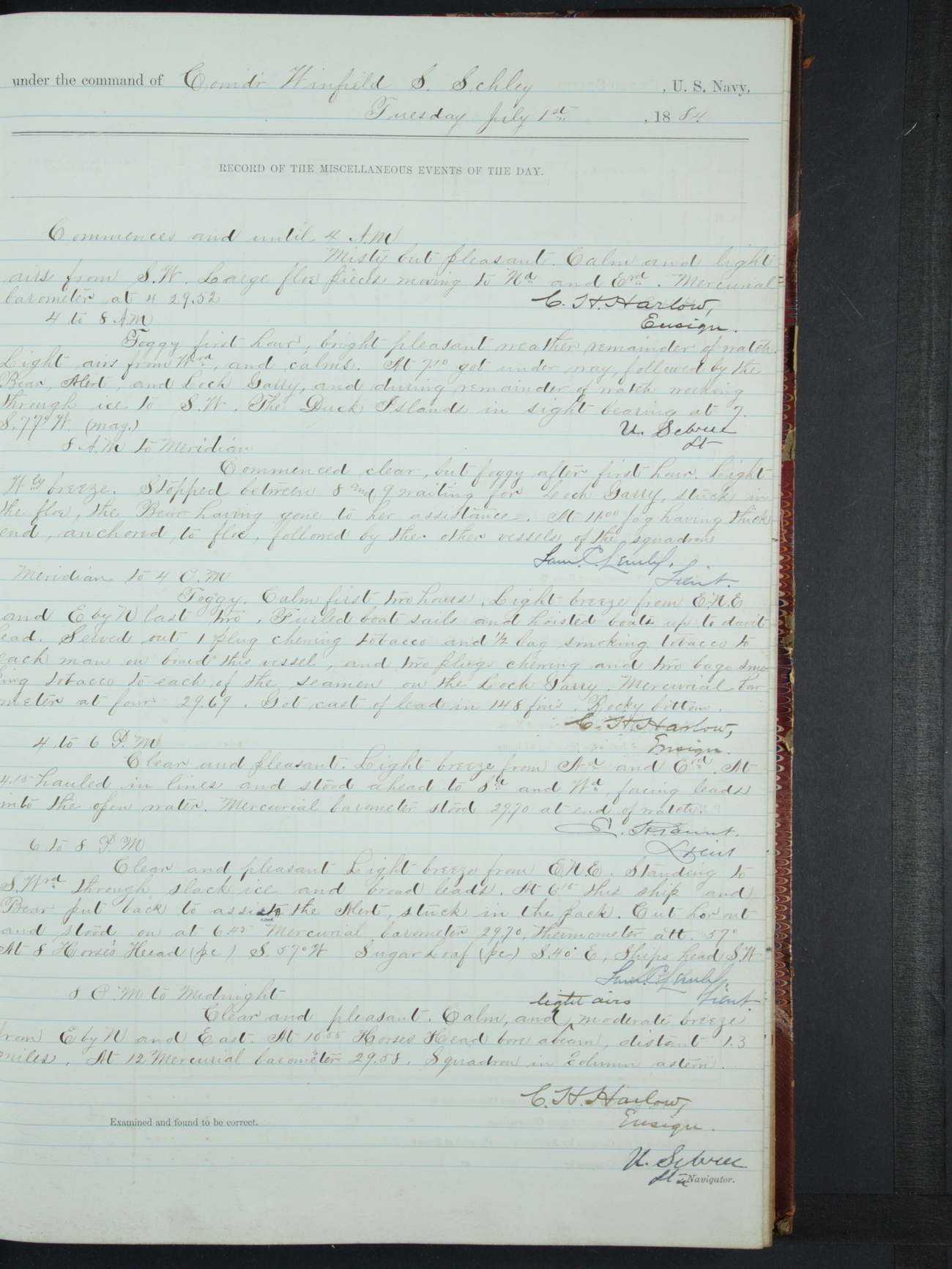

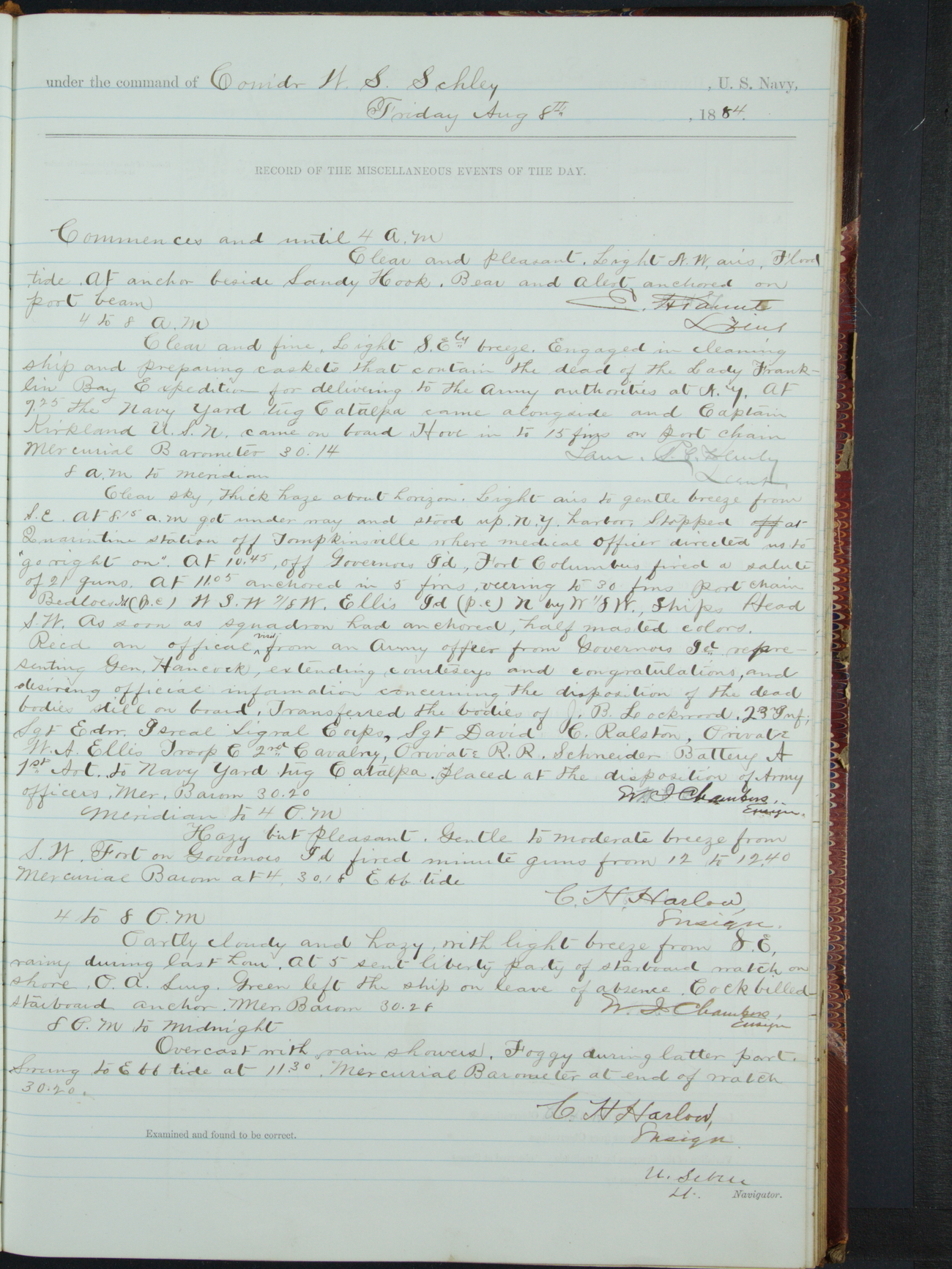

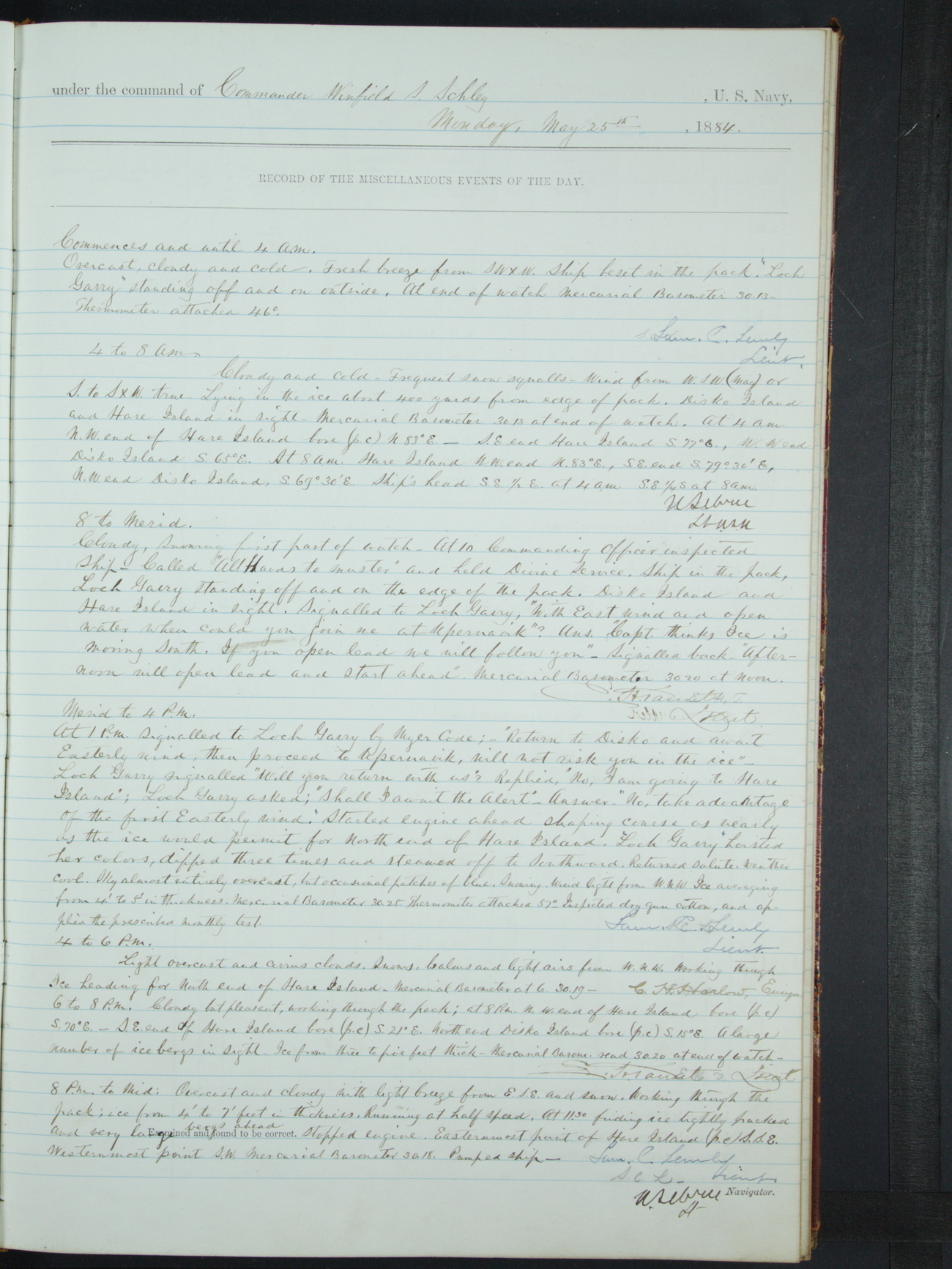

So congratulations to lollia paolina, gastcra, Hanibal94, DennisO, jil, pommystuart, LarryW, smith7748, tastiger, and every one of the 402 other crew members – on an achievement of epic proportions: From the 20,930 pages of the Bear’s logs (each read 3 times, remember), we’ve recorded 349,015 weather observations, each with several components (wind speed, barometer, air temperature, etc.) making more than 2.9 million data points.

And of course it’s not just weather, those logs also provided 22,957 dates, 6427 longitudes, 2947 people, 189 animals, 19,489 places, and more … 8,872,438 characters in all.

As before, I’ve used the transcriptions to make a movie version. But the sheer size of the achievement causes problems even here: I thought that a maximum movie length of 10,000 seconds was way more than enough, but not for the Bear. So while I sort that out, here’s just the first installment: 1884-1890.

A daughter: weatherdetective.net.au

If you look at weatherdetective.net.au you might get a feeling of deja-vu – a sense that you’ve seen something similar before.

oldWeather is not yet four, a bit young to be having children. But that’s four internet years, so maybe it’s time: We’ve contributed DNA to plenty of other projects, but Weather Detective is our first direct descendant.

As with all children it’s a separate person – with its own science team, volunteer community, logbooks, and interface. They are friends, but they will be doing things differently from us (and we’re not too old to learn from their approach).

Congratulations to Christa Pudmenzky, USQ, ABC, and all involved. We wish you fair winds and a following sea.

Arts and Music

Vice-Admiral robert Fitzroy

Robert Fitzroy

Charles Darwin

Charles Darwin

Noted naval exploring captain; surveyor and hydrographer; Vice-Admiral; pioneering weather forecaster, founder of the Met Office (first Meteorological Statist to the Board of Trade); governor of New Zealand. Robert Fitzroy was a man of parts, who made a great impact on the world.

But he sits in the shadow of Charles Darwin, who accompanied him on his 1831-6 circumnavigation in HMS Beagle. This September (8-13) the Progress Theatre in Reading, jointly with WAM, the Festival of Weather, Arts and Music, is staging Juliet Aykroyd’s play ‘Darwin and Fitzroy’. Each day, the performance is supported by a side event celebrating Fitzroy’s life and influence, and on Thursday September 11th that side event is me, talking about oldWeather. (We have not put the Beagle on oldWeather (yet) but I’ve got her weather observations from the 1831-6 circumnavigation).

Why not come along? Tickets are £10 (£8 concessions) – it’s an amateur performance, that’s just to cover the theatre costs. There is a different side-event on each day, but if you choose to come on Thursday, I’ll be happy to see you.

New crew members at Naval-History.net

Naval-History.net has been a core partner since the very start of oldWeather: That’s where we publish all the historical events we find in the logbooks – these are being carefully edited into ship histories (UK and US) by a team of volunteers. Naval-History.net is also run by a group of dedicated (and expert) amateurs, and adding the vast quantity of new material we are transcribing is a lot of work. Some of our volunteer editors have taken on the additional responsibility for this, and Gordon (who runs Naval-History.net) has added them to his crew:

  • Navigator Maikel prepares and publishes completed RN and US ship histories. In addition, he has published a large backlog of RN ship histories that were waiting for the addition of corrected navigation data and Journey Plotter maps (Maikel built the Journey Plotter program in his spare time), and published new US logs ready for editing. Not only that; he has created individual pages for the ships in the overhauled US index, and made many behind the scenes improvements, such as redirection pages and improvements to the RN index page.
  • Paymaster Janet sends out transcribed logs for editing and receives the completed edits in return. She checks them for style and obvious errors before making them available for Maikel to publish on the Naval-History website. She also keeps track of the status of all available logs – waiting to be edited, being edited, complete and published, or awaiting publication or updates; she also keeps record of which logs have been reserved by which editors. Janet also has checked the new US ship files for errors and supplied missing service histories.
  • Leading Stoker Howard does a lot of background work. He converts oldWeather’s plain text transcription files into the formatted Word files that Janet sends to the editors. He also creates many Journey Plotter maps for those editors who request his help. He corrects or adds latitudes/longitudes as necessary that allow Journey Plotter to produce maps – both of the ship’s full voyage and of more detailed sub-sections. Leading Stoker is his choice of rank; he keeps the fires burning.
  • Leading Telegraphist/Writer Caro advertises, using Naval-History’s accounts, new and updated ship histories on the social media, getting the word out on Facebook, Twitter and Google+. She also rewrites important sections of text for the Naval-History site and supplies artwork on occasion. She created the new logo for Naval-History.net that is starting to appear on the site and in social media.

The atmospheric conditions have been very unfavourable lately

It rained, and it rained, and it rained. Never in all the UK records, and they go back goodness knows how long, 103 years, or even 247 years? – never had we seen so much rain. Days and days and days.

The UK is too small to have its own weather, we participate in the weather of the North Atlantic region, or indeed the whole world. So to understand why the last UK winter was record-breakingly wet, we need to look at atmospheric behaviour on a large scale. I’ve turned to MERRA – an hour-by-hour reconstruction of the whole atmosphere – and made the video of northern hemisphere weather above. (There’s a lot going on, I recommend watching it in full-screen, press the ‘X’ on the control bar).

The key feature is the sequence of storms that spin off North America, and then head out into the North Atlantic in the Prevailing Westerly Circulation (anti-clockwise in the projection of the video). In November these storms mostly follow the standard path northwest to Greenland or Iceland and Scandinavia, but in December the weather changes: North America becomes much colder and the path of the storms moves south, driving the bad weather straight at the UK. This persistent pattern of a cold North America and southerly Atlantic Storm Track is the outstanding feature of the winter, and it shows up even more clearly a bit higher in the atmosphere – the Upper-Level Winds have a simpler structure, as they are not complicated by contact with the Earth’s surface.

Wind and temperature at 300hPa (30,000 feet or 9km altitude) of winter 2013/4 centred on the North Pole. Data are from MERRA.


The temperature difference between cold polar air and warmer southerly air stirs up an overturning circulation, and the rotation of the Earth turns this into a strong anti-clockwise (westerly) rotating wind – the Polar Vortex. As early as 1939, Carl-Gustaf Rossby realised that this circulation would not be smooth and stable, and the characteristic undulations (Rossby waves) have a major impact on our weather. It’s a series of these waves that push cold polar air much further south than usual over eastern North America, producing a Very Cold Winter in those parts, shifting the storm tracks south and causing the wet, stormy weather in the UK.

But of course I’m not really interested in modern weather – that’s too easy, with ample satellite observations and tremendous tools like MERRA to show us what’s going on. The challenge is in providing the long-term context needed to understand these modern events – is there a consistent pattern, if not, what’s changed. And it just happens that a previous Markedly Wet UK Winter occurred 99 years earlier, in 1914/5, and we’ve been rescuing logbook observations for that time so we can use them to make improved studies of that winter.

Surface weather of winter 1914/5 centred on the North Pole: Sea-ice, (white shading), pressure (contours), wind (vectors), temperature (colours) and rain/snow (black shading). Data are from the 20th Century reanalysis (scout run): yellow dots mark available surface pressure observations, and fog masks regions where the analysis is very uncertain (because there are too few nearby observations).

This time we use the Twentieth Century Reanalysis (more precisely a test version of 20CR updated to benefit from oldWeather-rescued observations). In some areas (most obviously the high Arctic) there are no observations so the analysis is too uncertain to be useful, but over the US, UK, and Atlantic storm-track region we can reconstruct the weather of that year.

Again, the picture is clearer if we look at the upper-level circulation:

Wind and temperature at 300hPa (30,000 feet or 9km altitude) of winter 1913/4 centred on the North Pole. Data are from the 20th Century reanalysis (scout run): yellow dots mark available surface pressure observations, and fog masks regions where the analysis is very uncertain (because there are too few nearby observations).

Do we see the same picture in 1914/5 as in 2013/4? Reality tends to be somewhat messier than the simple explanations that scientists treasure – but I think we do see the same pattern: a persistent tendency for cold, polar air to extend south over North America, and a North Atlantic storm track shifted to the south.

We can say quite precisely what happened last winter, and (thanks, in part, to oldWeather) how last winter compared to previous Exceptional Winters. However the obvious follow-on question is ‘Why did the polar vortex behave like that, and can we predict when it’s going to do it again? We’re still working on that one.

A talk by Kevin in Washington

WOOD-final.001

At the stroke of noon next Wednesday (May 14th), Kevin is giving a talk on our work at the Archives in Washington DC. All welcome, but note the details on the flyer.
